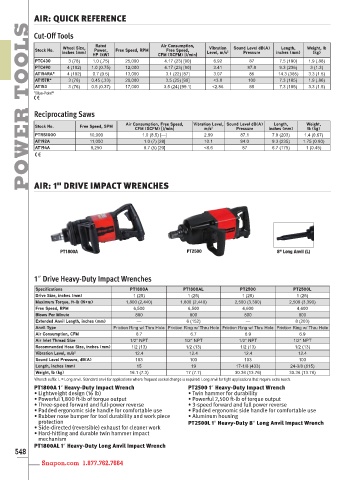

AIR: QUICK REFERENCE
TOOLS *Blue-Point ® inches (mm) 1.0 (0.75) Free Speed, RPM CFM (SCFM) [l/min] Level, m/s 2 Sound Level dB(A) inches (mm) Weight, lb
Cut-Off Tools
Air Consumption,
Rated
Vibration
Wheel Size,
Length,
Free Speed,
Stock No.
Power,
Pressure
(kg)
HP (kW)
1.0 (.75)
3 (76)
7.5 (190)
6.92
87
1.9 (.86)
25,000
4.17 (23) [90]
PTC430
3.41
87.8
4 (102)
3 (1.3)
4.17 (23) [90]
9.3 (236)
12,000
PTC490
85
4 (102)
13,000
3.1 (22) [87]
3.07
0.7 (0.5)
14.3 (365)
3.3 (1.5)
AT154RA*
<3.8
3 (76)
0.45 (.33)
20,000
1.9 (.86)
3.5 (25) [99]
100
7.3 (185)
AT157R*
0.5 (0.37)
AT153
85
17,000
<2.86
3.3 (1.5)
7.3 (185)
3 (76)
3.5 (24) [99.1]
POWER Reciprocating Saws Air Consumption, Free Speed, Vibration Level, Sound Level dB(A) inches (mm) 1.75 (0.80)
Weight,
Length,
Free Speed, SPM
Stock No.
CFM (SCFM) [l/min]
Pressure
m/s
lb (kg)
2
2.99
1.0 (8.5) [—]
10,000
1.4 (0.67)
87.1
7.9 (203)
PTRS1000
9.3 (235)
94.0
10.1
1.0 (7) [28]
11,000
AT192A
1 (0.45)
87
8,250
0.7 (5) [20]
6.7 (175)
<6.6
AT194A

AIR: 1" DRIVE IMPACT WRENCHES
PT1800A PT2500 8" Long Anvil (L)
1ʺ Drive Heavy-Duty Impact Wrenches
Specifications PT1800A PT1800AL PT2500 PT2500L
Drive Size, inches (mm) 1 (25) 1 (25) 1 (25) 1 (25)
Maximum Torque, ft-lb (N•m) 1,800 (2,440) 1,800 (2,440) 2,500 (3,390) 2,500 (3,390)
Free Speed, RPM 6,500 6,500 4,600 4,600
Blows Per Minute 800 800 800 800
Extended Anvil Length, inches (mm) — 6 (152) — 8 (203)
Anvil Type Friction Ring w/ Thru Hole Friction Ring w/ Thru Hole Friction Ring w/ Thru Hole Friction Ring w/ Thru Hole
Air Consumption, CFM 6.7 6.7 6.9 6.9
Air Inlet Thread Size 1/2ʺ NPT 1/2ʺ NPT 1/2ʺ NPT 1/2ʺ NPT
Recommended Hose Size, inches (mm) 1/2 (13) 1/2 (13) 1/2 (13) 1/2 (13)
Vibration Level, m/s² 12.4 12.4 12.4 12.4
Sound Level Pressure, dB(A) 103 103 103 103
Length, inches (mm) 15 19 17-1/8 (433) 24-3/8 (615)
Weight, lb (kg) 16.1 (7.3) 17 (7.7) 30.36 (13.76) 30.36 (13.76)
Wrench suffix: L = Long anvil. Standard anvil for applications where frequent socket change is required. Long anvil for tight applications that require extra reach.
PT1800A 1ʺ Heavy-Duty Impact Wrench PT2500 1ʺ Heavy-Duty Impact Wrench
• Lightweight design (16 lb) • Twin hammer for durability
• Powerful 1,800 ft-lb of torque output • Powerful 2,500 ft-lb of torque output
• Three-speed forward and full-power reverse • 3-speed forward and full power reverse
• Padded ergonomic side handle for comfortable use • Padded ergonomic side handle for comfortable use
• Rubber nose bumper for tool durability and work piece • Aluminum housing
protection PT2500L 1ʺ Heavy-Duty 8ʺ Long Anvil Impact Wrench
• Side-directed (reversible) exhaust for cleaner work
• Hard-hitting and durable twin hammer impact
mechanism
PT1800AL 1ʺ Heavy-Duty Long Anvil Impact Wrench
548
Snapon.com 1.877.762.7664
