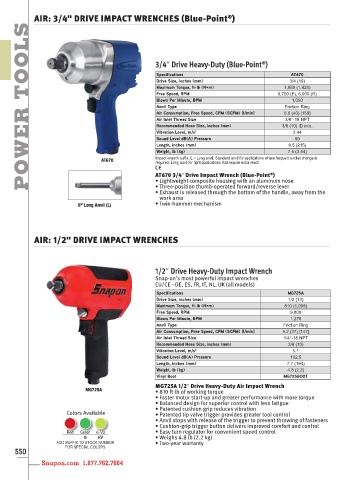

P. 552
AIR: 3/4" DRIVE IMPACT WRENCHES (Blue-Point )
®
TOOLS 3/4ʺ Drive Heavy-Duty (Blue-Point ) AT670
®
Specifications
3/4 (19)
Drive Size, inches (mm)
1,050 (1,423)
Maximum Torque, ft-lb (N•m)
Free Speed, RPM
1,050
Blows Per Minute, BPM 6,700 (F), 6,900 (R)
Friction Ring
Anvil Type 3/8 (10) ID min.
POWER AT670 Impact wrench suffix: L = Long anvil. Standard anvil for applications where frequent socket change is
5.6 (40) [159]
Air Consumption, Free Speed, CFM (SCFM) [l/min]
3/8ʺ-18 NPT
Air Inlet Thread Size
Recommended Hose Size, inches (mm)
2.44
2
Vibration Level, m/s
Sound Level dB(A) Pressure
99
Length, inches (mm)
8.5 (215)
7.5 (3.44)
Weight, lb (kg)
required. Long anvil for tight applications that require extra reach.
AT670 3/4ʺ Drive Impact Wrench (Blue-Point )
®
• Lightweight composite housing with an aluminum nose
• Three-position thumb-operated forward/reverse lever
• Exhaust is released through the bottom of the handle, away from the
work area
6" Long Anvil (L) • Twin-hammer mechanism
AIR: 1/2" DRIVE IMPACT WRENCHES
1/2ʺ Drive Heavy-Duty Impact Wrench
Snap-on’s most powerful impact wrenches
EU/CE—DE, ES, FR, IT, NL, UK (all models)
Specifications MG725A
Drive Size, inches (mm) 1/2 (13)
Maximum Torque, ft-lb (N•m) 810 (1,098)
Free Speed, RPM 9,800
Blows Per Minute, BPM 1,270
Anvil Type Friction Ring
Air Consumption, Free Speed, CFM (SCFM) [l/min] 5.2 (37) [147]
Air Inlet Thread Size 1/4ʺ-18 NPT
Recommended Hose Size, inches (mm) 3/8 (10)
Vibration Level, m/s 2 5.1
Sound Level dB(A) Pressure 102.5
Length, inches (mm) 7.7 (194)
Weight, lb (kg) 4.8 (2.2)
Vinyl Boot MG725BOOT
MG725A 1/2ʺ Drive Heavy-Duty Air Impact Wrench
MG725A
• 810 ft-lb of working torque
• Faster motor start-up and greater performance with more torque
• Balanced design for superior control with less fatigue
• Patented cushion grip reduces vibration
Colors Available • Patented tip valve trigger provides greater tool control
• Anvil stops with release of the trigger to prevent throwing of fasteners
• Cushion-grip trigger button delivers improved comfort and control
Red Green Hi-Viz • Easy turn regulator for convenient speed control
G HV • Weighs 4.8 lb (2.2 kg)
ADD SUFFIX TO STOCK NUMBER • Two-year warranty
FOR SPECIAL COLORS
550
Snapon.com 1.877.762.7664
