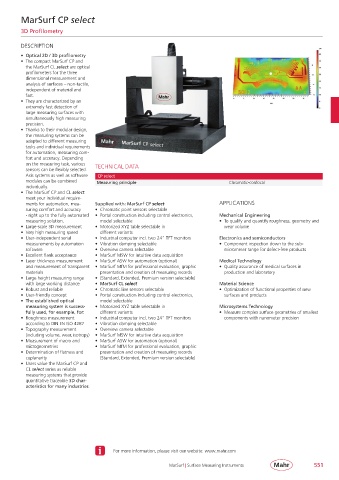

MarSurf CP select

3D Profilometry

DESCRIPTION

• Optical 2D / 3D profilometry
• The compact MarSurf CP and
the MarSurf CL select are optical
profilometers for the three
dimensional measurement and
analysis of surfaces – non-tactile,
independent of material and
fast.
• They are characterized by an
extremely fast detection of
large measuring surfaces with
simultaneously high measuring
precision.
• Thanks to their modular design,
the measuring systems can be
adapted to different measuring
tasks and individual requirements
for automation, measuring com-
fort and accuracy. Depending
on the measuring task, various TECHNICAL DATA
sensors can be flexibly selected.
Axis systems as well as software CP select
modules can be combined Measuring principle Chromatic-confocal
individually.
• The MarSurf CP and CL select
meet your individual require-
ments for automation, mea- Supplied with: MarSurf CP select APPLICATIONS
suring comfort and accuracy • Chromatic point sensors selectable
- right up to the fully automated • Portal construction including control electronics, Mechanical Engineering
measuring solution. model selectable • To qualify and quantify roughness, geometry and
• Large-scale 3D measurement • Motorized XYZ table selectable in wear volume
• Very high measuring speed different variants
• User-independent serial • Industrial computer incl. two 24“ TFT monitors Electronics and semiconductors
measurements by automation • Vibration damping selectable • Component inspection down to the sub-
software • Overview camera selectable micrometer range for defect-free products
• Excellent flank acceptance • MarSurf MSW for intuitive data acquisition
• Layer thickness measurement • MarSurf ASW for automation (optional) Medical Technology
and measurement of transparent • MarSurf MfM for professional evaluation, graphic • Quality assurance of medical surfaces in
materials presentation and creation of measuring records production and laboratory
• Large height measuring range • (Standard, Extended, Premium version selectable)
with large working distance • MarSurf CL select Material Science
• Robust and reliable • Chromatic line sensors selectable • Optimization of functional properties of new
• User-friendly concept • Portal construction including control electronics, surfaces and products
• The established optical model selectable
measuring system is success- • Motorized XYZ table selectable in Microsystems Technology
fully used, for example, for: different variants • Measure complex surface geometries of smallest
• Roughness measurement • Industrial computer incl. two 24“ TFT monitors components with nanometer precision
according to DIN EN ISO 4287 • Vibration damping selectable
• Topography measurement • Overview camera selectable
(including volume, wear, isotropy) • MarSurf MSW for intuitive data acquisition
• Measurement of macro and • MarSurf ASW for automation (optional)
microgeometries • MarSurf MfM for professional evaluation, graphic
• Determination of flatness and presentation and creation of measuring records
coplanarity (Standard, Extended, Premium version selectable)
• Users value the MarSurf CP and
CL select series as reliable
measuring systems that provide
quantitative traceable 3D char-
acteristics for many industries.

For more information, please visit our website: www.mahr.com

MarSurf | Surface Measuring Instruments 551
