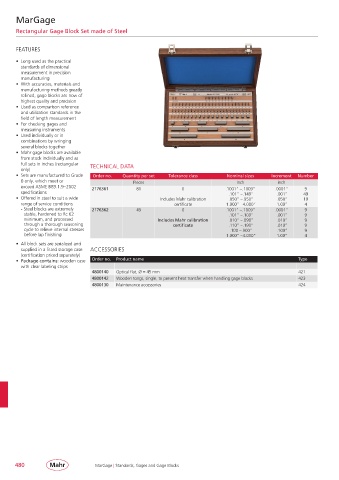

MarGage

Rectangular Gage Block Set made of Steel

FEATURES

• Long used as the practical
standards of dimensional
measurement in precision
manufacturing
• With accuracies, materials and
manufacturing methods greatly
refined, gage blocks are now of
highest quality and precision
• Used as comparison reference
and utilization standards in the
field of length measurement
• For checking gages and
measuring instruments
• Used individually or in
combinations by wringing
several blocks together
• Mahr gage blocks are available
from stock individually and as
full sets in inches (rectangular TECHNICAL DATA
only)
• Sets are manufactured to Grade Order no. Quantity per set Tolerance class Nominal sizes Increment Number
0 only, which meet or Pieces inch inch
exceed ASME B89.1.9– 2002 2176361 81 0 .1001” – .1009” .0001” 9
specifications .101” – .149” .001” 49
• Offered in steel to suit a wide Includes Mahr calibration .050” – .950” .050” 19
range of service conditions certificate 1.000” – 4.000” 1.00” 4
- Steel blocks are extremely 2176362 49 0 .1001” – .1009” .0001” 9
stable, hardened to Rc 62 .101” – .109” .001” 9
minimum, and processed Includes Mahr calibration .010” – .090” .010” 9
through a thorough seasoning certificate .110” – .190” .010” 9
cycle to relieve internal stresses .100 – .900” .100” 9
before lap finishing 1.000” – 4.000” 1.00” 4
• All block sets are serialized and
supplied in a fitted storage case ACCESSORIES
(certification priced separately)
• Package contains: wooden case Order no. Product name Type
with clear labeling strips
4800140 Optical flat, Ø = 45 mm 421
4800142 Wooden tongs, single, to prevent heat transfer when handling gage blocks 423
4800130 Maintenance accessories 424
