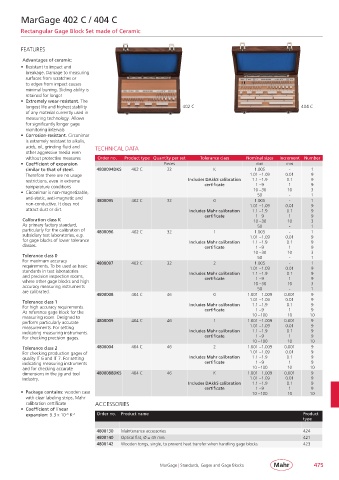

MarGage 402 C / 404 C

Rectangular Gage Block Set made of Ceramic

FEATURES

Advantages of ceramic:
• Resistant to impact and
breakage. Damage to measuring
surfaces from scratches or
to edges from impact causes
minimal burring. Sliding ability is
retained for longer
• Extremely wear-resistant. The
longest life and highest stability 402 C 404 C
of any material currently used in
measuring technology. Allows
for significantly longer gage
monitoring intervals
• Corrosion-resistant. Circonimar
is extremely resistant to alkalis,
acids, oil, grinding fluid and TECHNICAL DATA
other aggressive media even
without protective measures Order no. Product type Quantity per set Tolerance class Nominal sizes Increment Number
• Coefficient of expansion Pieces mm mm
similar to that of steel. 4800094DKS 402 C 32 K 1.005 - 1
Therefore there are no usage 1.01 – 1.09 0.01 9
restrictions, even in extreme Includes DAkkS calibration 1.1 – 1.9 0.1 9
temperature conditions certificate 1 – 9 1 9
• Circonimar is non-magnetizable, 10 – 30 10 3
50
-
1
anti-static, anti-magnetic and 4800095 402 C 32 0 1.005 - 1
non-conductive. It does not 1.01 – 1.09 0.01 9
attract dust or dirt. Includes Mahr calibration 1.1 – 1.9 0.1 9
certificate 1 – 9 1 9
Calibration class K 10 – 30 10 3
As primary factory standard, 50 - 1
particularly for the calibration of 4800096 402 C 32 1 1.005 - 1
subsidiary test laboratories, e.g. 1.01 – 1.09 0.01 9
for gage blocks of lower tolerance Includes Mahr calibration 1.1 – 1.9 0.1 9
classes. certificate 1 – 9 1 9
10 – 30 10 3
Tolerance class 0 50 - 1
For maximum accuracy 4800097 402 C 32 2 1.005 - 1
requirements. To be used as basic 1.01 – 1.09 0.01 9
standards in test laboratories Includes Mahr calibration 1.1 – 1.9 0.1 9
and precision inspection rooms, certificate 1 – 9 1 9
where other gage blocks and high 10 – 30 10 3
accuracy measuring instruments 50 - 1
are calibrated.
4800008 404 C 46 0 1.001 – 1.009 0.001 9
1.01 – 1.09 0.01 9
Tolerance class 1
For high accuracy requirements. Includes Mahr calibration 1.1 – 1.9 0.1 9
As reference gage block for the certificate 1 – 9 1 9
measuring room. Designed to 10 – 100 10 10
perform particularly accurate 4800009 404 C 46 1 1.001 – 1.009 0.001 9
measurements. For setting 1.01 – 1.09 0.01 9
indicating measuring instruments. Includes Mahr calibration 1.1 – 1.9 0.1 9
For checking precision gages. certificate 1 – 9 1 9
10 – 100 10 10
Tolerance class 2 4800004 404 C 46 2 1.001 – 1.009 0.001 9
For checking production gages of 1.01 – 1.09 0.01 9
quality IT 6 and IT 7. For setting Includes Mahr calibration 1.1 – 1.9 0.1 9
indicating measuring instruments certificate 1 – 9 1 9
and for checking accurate 10 – 100 10 10
dimensions in the jig and tool 4800088DKS 404 C 46 K 1.001 – 1.009 0.001 9
industry. 1.01 – 1.09 0.01 9
Includes DAkkS calibration 1.1 – 1.9 0.1 9
certificate 1 – 9 1 9
• Package contains: wooden case 10 – 100 10 10
with clear labeling strips, Mahr
calibration certificate ACCESSORIES
• Coefficient of linear
– 6
expansion: 9.3 x 10 K – 1 Order no. Product name Product
type

4800130 Maintenance accessories 424
4800140 Optical flat, Ø = 45 mm 421
4800142 Wooden tongs, single, to prevent heat transfer when handling gage blocks 423

MarGage | Standards, Gages and Gage Blocks 475
