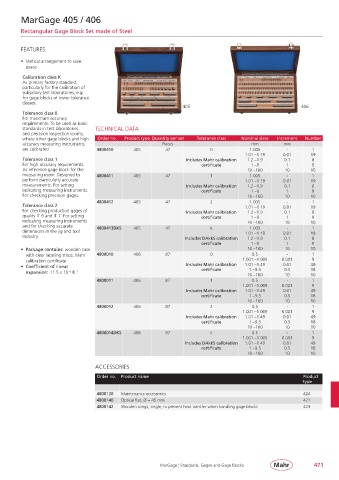

MarGage 405 / 406

Rectangular Gage Block Set made of Steel

FEATURES

• Vertical arrangement to save
space
Calibration class K
As primary factory standard,
particularly for the calibration of
subsidiary test laboratories, e.g.
for gage blocks of lower tolerance
classes.
405 406
Tolerance class 0
For maximum accuracy
requirements. To be used as basic
standards in test laboratories TECHNICAL DATA
and precision inspection rooms,
where other gage blocks and high Order no. Product type Quantity per set Tolerance class Nominal sizes Increment Number
accuracy measuring instruments Pieces mm mm
are calibrated. 4800410 405 47 0 1.005 - 1
1.01 – 1.19 0.01 19
Tolerance class 1 Includes Mahr calibration 1.2 – 1.9 0.1 8
For high accuracy requirements. certificate 1 – 9 1 9
As reference gage block for the 10 – 100 10 10
measuring room. Designed to 4800411 405 47 1 1.005 - 1
perform particularly accurate 1.01 – 1.19 0.01 19
measurements. For setting Includes Mahr calibration 1.2 – 1.9 0.1 8
indicating measuring instruments. certificate 1 – 9 1 9
For checking precision gages. 10 – 100 10 10
4800412 405 47 2 1.005 - 1
Tolerance class 2 1.01 – 1.19 0.01 19
For checking production gages of Includes Mahr calibration 1.2 – 1.9 0.1 8
quality IT 6 and IT 7. For setting certificate 1 – 9 1 9
indicating measuring instruments 10 – 100 10 10
and for checking accurate 4800413DKS 405 47 K 1.005 - 1
dimensions in the jig and tool 1.01 – 1.19 0.01 19
industry. Includes DAkkS calibration 1.2 – 1.9 0.1 8
certificate 1 – 9 1 9
• Package contains: wooden case 10 – 100 10 10
with clear labeling strips, Mahr 4800010 406 87 0 0.5 - 1
calibration certificate 1.001 – 1.009 0.001 9
• Coefficient of linear Includes Mahr calibration 1.01 – 1.49 0.01 49
18
certificate
1 – 9.5
0.5
– 6
expansion: 11.5 x 10 K – 1
10 – 100 10 10
4800011 406 87 1 0.5 - 1
1.001 – 1.009 0.001 9
Includes Mahr calibration 1.01 – 1.49 0.01 49
certificate 1 – 9.5 0.5 18
10 – 100 10 10
4800012 406 87 2 0.5 - 1
1.001 – 1.009 0.001 9
Includes Mahr calibration 1.01 – 1.49 0.01 49
certificate 1 – 9.5 0.5 18
10 – 100 10 10
4800014DKS 406 87 K 0.5 - 1
1.001 – 1.009 0.001 9
Includes DAkkS calibration 1.01 – 1.49 0.01 49
certificate 1 – 9.5 0.5 18
10 – 100 10 10
ACCESSORIES
Order no. Product name Product
type

4800130 Maintenance accessories 424
4800140 Optical flat, Ø = 45 mm 421
4800142 Wooden tongs, single, to prevent heat transfer when handling gage blocks 423

MarGage | Standards, Gages and Gage Blocks 471
