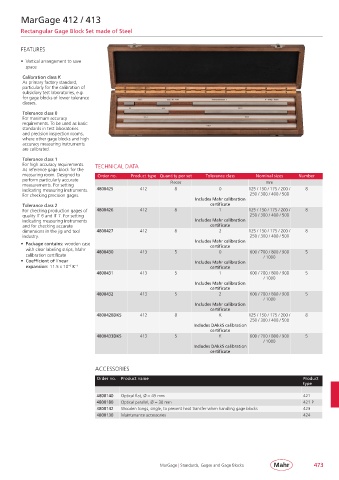

MarGage 412 / 413

Rectangular Gage Block Set made of Steel

FEATURES

• Vertical arrangement to save
space
Calibration class K
As primary factory standard,
particularly for the calibration of
subsidiary test laboratories, e.g.
for gage blocks of lower tolerance
classes.
Tolerance class 0
For maximum accuracy
requirements. To be used as basic
standards in test laboratories
and precision inspection rooms,
where other gage blocks and high
accuracy measuring instruments
are calibrated.
Tolerance class 1
For high accuracy requirements. TECHNICAL DATA
As reference gage block for the
measuring room. Designed to Order no. Product type Quantity per set Tolerance class Nominal sizes Number
perform particularly accurate Pieces mm
measurements. For setting
indicating measuring instruments. 4800425 412 8 0 125 / 150 / 175 / 200 / 8
For checking precision gages. 250 / 300 / 400 / 500
Includes Mahr calibration
Tolerance class 2 certificate
For checking production gages of 4800426 412 8 1 125 / 150 / 175 / 200 / 8
quality IT 6 and IT 7. For setting 250 / 300 / 400 / 500
indicating measuring instruments Includes Mahr calibration
and for checking accurate certificate
dimensions in the jig and tool 4800427 412 8 2 125 / 150 / 175 / 200 / 8
industry. 250 / 300 / 400 / 500
Includes Mahr calibration
• Package contains: wooden case certificate
with clear labeling strips, Mahr 4800430 413 5 0 600 / 700 / 800 / 900 5
calibration certificate / 1000
• Coefficient of linear Includes Mahr calibration
expansion: 11.5 x 10 K – 1 certificate
– 6
4800431 413 5 1 600 / 700 / 800 / 900 5
/ 1000
Includes Mahr calibration
certificate
4800432 413 5 2 600 / 700 / 800 / 900 5
/ 1000
Includes Mahr calibration
certificate
4800428DKS 412 8 K 125 / 150 / 175 / 200 / 8
250 / 300 / 400 / 500
Includes DAkkS calibration
certificate
4800433DKS 413 5 K 600 / 700 / 800 / 900 5
/ 1000
Includes DAkkS calibration
certificate

ACCESSORIES
Order no. Product name Product
type

4800140 Optical flat, Ø = 45 mm 421
4800180 Optical parallel, Ø = 30 mm 421 P
4800142 Wooden tongs, single, to prevent heat transfer when handling gage blocks 423
4800130 Maintenance accessories 424

MarGage | Standards, Gages and Gage Blocks 473
