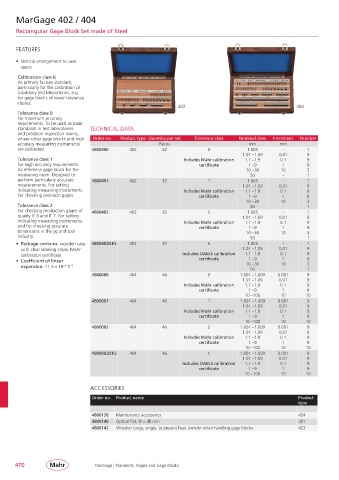

MarGage 402 / 404

Rectangular Gage Block Set made of Steel

FEATURES

• Vertical arrangement to save
space
Calibration class K
As primary factory standard,
particularly for the calibration of
subsidiary test laboratories, e.g.
for gage blocks of lower tolerance
classes.
402 404
Tolerance class 0
For maximum accuracy
requirements. To be used as basic
standards in test laboratories TECHNICAL DATA
and precision inspection rooms,
where other gage blocks and high Order no. Product type Quantity per set Tolerance class Nominal sizes Increment Number
accuracy measuring instruments Pieces mm mm
are calibrated. 4800400 402 32 0 1.005 - 1
1.01 – 1.09 0.01 9
Tolerance class 1 Includes Mahr calibration 1.1 – 1.9 0.1 9
For high accuracy requirements. certificate 1 – 9 1 9
As reference gage block for the 10 – 30 10 3
measuring room. Designed to 50 - 1
perform particularly accurate 4800401 402 32 1 1.005 - 1
measurements. For setting 1.01 – 1.09 0.01 9
indicating measuring instruments. Includes Mahr calibration 1.1 – 1.9 0.1 9
For checking precision gages. certificate 1 – 9 1 9
10 – 30 10 3
Tolerance class 2 50 - 1
For checking production gages of 4800402 402 32 2 1.005 - 1
quality IT 6 and IT 7. For setting 1.01 – 1.09 0.01 9
indicating measuring instruments Includes Mahr calibration 1.1 – 1.9 0.1 9
and for checking accurate certificate 1 – 9 1 9
dimensions in the jig and tool 10 – 30 10 3
industry. 50 - 1
• Package contains: wooden case 4800403DKS 402 32 K 1.005 - 1
with clear labeling strips, Mahr 1.01 – 1.09 0.01 9
calibration certificate Includes DAkkS calibration 1.1 – 1.9 0.1 9
1
1 – 9
• Coefficient of linear certificate 10 – 30 10 9
3
expansion: 11.5 x 10 K – 1
– 6
50 - 1
4800000 404 46 0 1.001 – 1.009 0.001 9
1.01 – 1.09 0.01 9
Includes Mahr calibration 1.1 – 1.9 0.1 9
certificate 1 – 9 1 9
10 – 100 10 10
4800001 404 46 1 1.001 – 1.009 0.001 9
1.01 – 1.09 0.01 9
Includes Mahr calibration 1.1 – 1.9 0.1 9
certificate 1 – 9 1 9
10 – 100 10 10
4800002 404 46 2 1.001 – 1.009 0.001 9
1.01 – 1.09 0.01 9
Includes Mahr calibration 1.1 – 1.9 0.1 9
certificate 1 – 9 1 9
10 – 100 10 10
4800003DKS 404 46 K 1.001 – 1.009 0.001 9
1.01 – 1.09 0.01 9
Includes DAkkS calibration 1.1 – 1.9 0.1 9
certificate 1 – 9 1 9
10 – 100 10 10
ACCESSORIES

Order no. Product name Product
type

4800130 Maintenance accessories 424
4800140 Optical flat, Ø = 45 mm 421
4800142 Wooden tongs, single, to prevent heat transfer when handling gage blocks 423

470 MarGage | Standards, Gages and Gage Blocks
