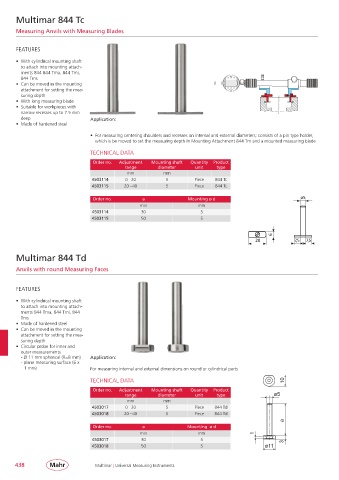

Multimar 844 Tc

Measuring Anvils with Measuring Blades

FEATURES

• With cylindrical mounting shaft
to attach into mounting attach-
ments 844 844 Tma, 844 Tmi,
844 Tms
• Can be moved in the mounting
attachment for setting the mea- MarCator 1087 BR
suring depth
• With long measuring blade
• Suitable for workpieces with
narrow recesses up to 7.5 mm
deep Application:
• Made of hardened steel
• For measuring centering shoulders and recesses on internal and external diameters; consists of a pin type holder,
which is be moved to set the measuring depth in Mounting Attachment 844 Tm and a mounted measuring blade

TECHNICAL DATA
Order no. Adjustment Mounting shaft Quantity Product
range diameter unit type
mm mm
4503114 0 – 20 5 Piece 844 Tc
4503115 20 – 40 5 Piece 844 Tc

Order no. a Mounting ø d
mm mm
4503114 30 5
4503115 50 5

Multimar 844 Td

Anvils with round Measuring Faces

FEATURES
• With cylindrical mounting shaft
to attach into mounting attach-
ments 844 Tma, 844 Tmi, 844
Tms
• Made of hardened steel
• Can be moved in the mounting
attachment for setting the mea-
suring depth
• Circular probe for inner and
outer measurements
- Ø 11 mm spherical (R=8 mm) Application:
- plane measuring surface (6 x
1 mm) For measuring internal and external dimensions on round or cylindrical parts

TECHNICAL DATA
Order no. Adjustment Mounting shaft Quantity Product
range diameter unit type
mm mm
4503017 0 – 20 5 Piece 844 Td
4503018 20 – 40 5 Piece 844 Td

Order no. a Mounting ø d
mm mm
4503017 30 5
4503018 50 5

438 Multimar | Universal Measuring Instruments
