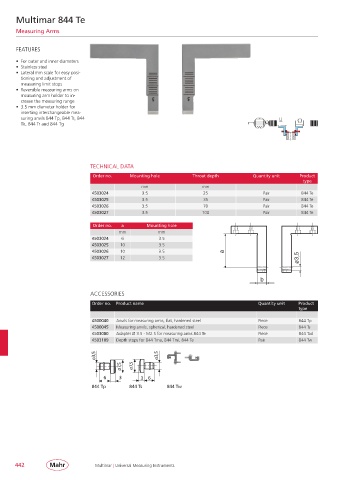

Multimar 844 Te

Measuring Arms

FEATURES

• For outer and inner diameters
• Stainless steel
• Lateral mm scale for easy posi-
tioning and adjustment of
measuring limit stops
• Reversible measuring arms on
measuring arm holder to in-
crease the measuring range
• 3.5 mm diameter holder for
inserting interchangeable mea-
suring anvils 844 Tp, 844 Ts, 844
Tk, 844 Tr and 844 Tg
MarCator 1087 BR

TECHNICAL DATA
Order no. Mounting hole Throat depth Quantity unit Product
type
mm mm
4503024 3.5 25 Pair 844 Te
4503025 3.5 35 Pair 844 Te
4503026 3.5 70 Pair 844 Te
4503027 3.5 100 Pair 844 Te

Order no. a Mounting hole
mm mm
4503024 6 3.5
4503025 10 3.5
4503026 10 3.5 a
4503027 12 3.5 ø3,5

b

ACCESSORIES
Order no. Product name Quantity unit Product
type

4500040 Anvils for measuring arms, flat, hardened steel Piece 844 Tp
4500045 Measuring anvils, spherical, hardened steel Piece 844 Ts
4503080 Adapter Ø 3.5 - M2.5 for measuring arms 844 Te Piece 844 Tad
4503109 Depth stops for 844 Tma, 844 Tmi, 844 Te Pair 844 Tw

844 Tp 844 Ts 844 Tw

442 Multimar | Universal Measuring Instruments
