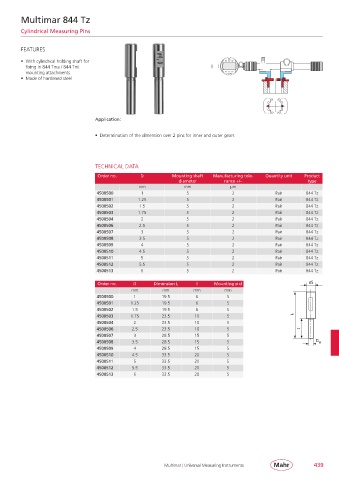

Multimar 844 Tz

Cylindrical Measuring Pins

FEATURES

• With cylindrical holding shaft for
fixing in 844 Tma / 844 Tmi
mounting attachments MarCator 1087 BR
• Made of hardened steel

Application:

• Determination of the dimension over 2 pins for inner and outer gears

TECHNICAL DATA
Order no. D Mounting shaft Manufacturing tole- Quantity unit Product
diameter rance +/– type
mm mm µm
4500500 1 5 2 Pair 844 Tz
4500501 1.25 5 2 Pair 844 Tz
4500502 1.5 5 2 Pair 844 Tz
4500503 1.75 5 2 Pair 844 Tz
4500504 2 5 2 Pair 844 Tz
4500506 2.5 5 2 Pair 844 Tz
4500507 3 5 2 Pair 844 Tz
4500508 3.5 5 2 Pair 844 Tz
4500509 4 5 2 Pair 844 Tz
4500510 4.5 5 2 Pair 844 Tz
4500511 5 5 2 Pair 844 Tz
4500512 5.5 5 2 Pair 844 Tz
4500513 6 5 2 Pair 844 Tz

Order no. D Dimension L l Mounting ø d
mm mm mm mm
4500500 1 19.5 6 5
4500501 1.25 19.5 6 5
4500502 1.5 19.5 6 5
4500503 1.75 23.5 10 5
4500504 2 23.5 10 5
4500506 2.5 23.5 10 5
4500507 3 28.5 15 5
4500508 3.5 28.5 15 5
4500509 4 28.5 15 5
4500510 4.5 33.5 20 5
4500511 5 33.5 20 5
4500512 5.5 33.5 20 5
4500513 6 33.5 20 5

Multimar | Universal Measuring Instruments 439
