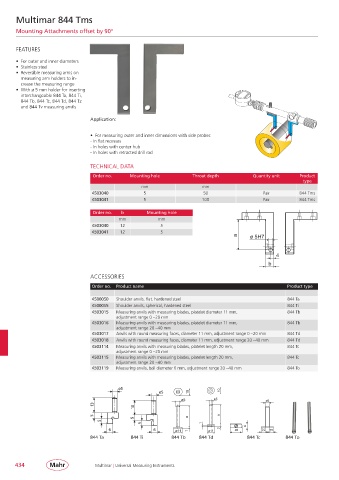

Multimar 844 Tms

Mounting Attachments offset by 90°

FEATURES

• For outer and inner diameters
• Stainless steel
• Reversible measuring arms on
measuring arm holders to in-
crease the measuring range
• With ø 5 mm holder for inserting
interchangeable 844 Ta, 844 Ti,
844 Tb, 844 Tc, 844 Td, 844 Tz
and 844 Tv measuring anvils

Application:

• For measuring outer and inner dimensions with side probes:
- In flat recesses
- In holes with center hub
- In holes with retracted drill rod

TECHNICAL DATA
Order no. Mounting hole Throat depth Quantity unit Product
type
mm mm
4503040 5 50 Pair 844 Tms
4503041 5 100 Pair 844 Tms

Order no. b Mounting hole
mm mm
4503040 12 5
4503041 12 5
a ø 5H7

4
b

ACCESSORIES
Order no. Product name Product type

4500050 Shoulder anvils, flat, hardened steel 844 Ta
4500055 Shoulder anvils, spherical, hardened steel 844 Ti
4503015 Measuring anvils with measuring blades, platelet diameter 11 mm, 844 Tb
adjustment range 0 – 20 mm
4503016 Measuring anvils with measuring blades, platelet diameter 11 mm, 844 Tb
adjustment range 20 – 40 mm
4503017 Anvils with round measuring faces, diameter 11 mm, adjustment range 0 – 20 mm 844 Td
4503018 Anvils with round measuring faces, diameter 11 mm, adjustment range 20 – 40 mm 844 Td
4503114 Measuring anvils with measuring blades, platelet length 20 mm, 844 Tc
adjustment range 0 – 20 mm
4503115 Measuring anvils with measuring blades, platelet length 20 mm, 844 Tc
adjustment range 20 – 40 mm
4503119 Measuring anvils, ball diameter 6 mm, adjustment range 20 – 40 mm 844 To

844 Ta 844 Ti 844 Tb 844 Td 844 Tc 844 To

434 Multimar | Universal Measuring Instruments
