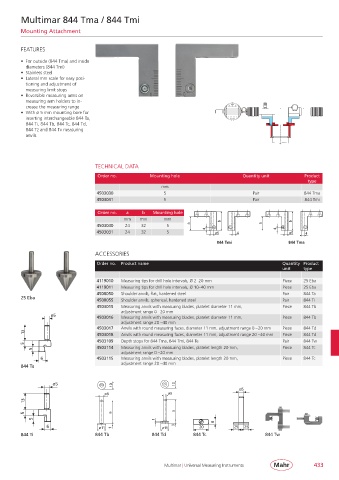

Multimar 844 Tma / 844 Tmi

Mounting Attachment

FEATURES

• For outside (844 Tma) and inside
diameters (844 Tmi)
• Stainless steel
• Lateral mm scale for easy posi-
tioning and adjustment of
measuring limit stops
• Reversible measuring arms on
measuring arm holders to in-
crease the measuring range
• With ø 5 mm mounting bore for
inserting interchangeable 844 Ta, MarCator 1087 BR
844 Ti, 844 Tb, 844 Tc, 844 Td,
844 Tz and 844 Tv measuring
anvils

TECHNICAL DATA
Order no. Mounting hole Quantity unit Product
type
mm
4503030 5 Pair 844 Tma
4503031 5 Pair 844 Tmi

Order no. a b Mounting hole
mm mm mm
b b
4503030 24 32 5 a a
4 4
4503031 24 32 5 ø5 4 ø5 4
844 Tmi 844 Tma
ACCESSORIES
Order no. Product name Quantity Product
unit type

4119010 Measuring tips for drill hole intervals, Ø 2– 20 mm Piece 25 Eba
4119011 Measuring tips for drill hole intervals, Ø 10– 40 mm Piece 25 Eba
4500050 Shoulder anvils, flat, hardened steel Pair 844 Ta
25 Eba
4500055 Shoulder anvils, spherical, hardened steel Pair 844 Ti
4503015 Measuring anvils with measuring blades, platelet diameter 11 mm, Piece 844 Tb
adjustment range 0 – 20 mm
4503016 Measuring anvils with measuring blades, platelet diameter 11 mm, Piece 844 Tb
adjustment range 20 – 40 mm
4503017 Anvils with round measuring faces, diameter 11 mm, adjustment range 0 – 20 mm Piece 844 Td
4503018 Anvils with round measuring faces, diameter 11 mm, adjustment range 20 – 40 mm Piece 844 Td
4503109 Depth stops for 844 Tma, 844 Tmi, 844 Te Pair 844 Tw
4503114 Measuring anvils with measuring blades, platelet length 20 mm, Piece 844 Tc
adjustment range 0 – 20 mm
4503115 Measuring anvils with measuring blades, platelet length 20 mm, Piece 844 Tc
adjustment range 20 – 40 mm
844 Ta

844 Ti 844 Tb 844 Td 844 Tc 844 Tw

Multimar | Universal Measuring Instruments 433
