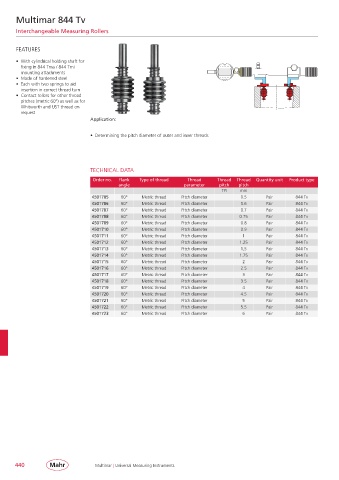

Multimar 844 Tv

Interchangeable Measuring Rollers

FEATURES

• With cylindrical holding shaft for
fixing in 844 Tma / 844 Tmi
mounting attachments
• Made of hardened steel MarCator 1087 BR
• Each with two springs to aid
insertion in correct thread turn
• Contact rollers for other thread
pitches (metric 60°) as well as for
Whitworth and UST thread on
request
Application:

• Determining the pitch diameter of outer and inner threads

TECHNICAL DATA

Order no. Flank Type of thread Thread Thread Thread Quantity unit Product type
angle parameter pitch pitch
TPI mm
4501705 60° Metric thread Pitch diameter 0.5 Pair 844 Tv
4501706 60° Metric thread Pitch diameter 0.6 Pair 844 Tv
4501707 60° Metric thread Pitch diameter 0.7 Pair 844 Tv
4501708 60° Metric thread Pitch diameter 0.75 Pair 844 Tv
4501709 60° Metric thread Pitch diameter 0.8 Pair 844 Tv
4501710 60° Metric thread Pitch diameter 0.9 Pair 844 Tv
4501711 60° Metric thread Pitch diameter 1 Pair 844 Tv
4501712 60° Metric thread Pitch diameter 1.25 Pair 844 Tv
4501713 60° Metric thread Pitch diameter 1,5 Pair 844 Tv
4501714 60° Metric thread Pitch diameter 1.75 Pair 844 Tv
4501715 60° Metric thread Pitch diameter 2 Pair 844 Tv
4501716 60° Metric thread Pitch diameter 2.5 Pair 844 Tv
4501717 60° Metric thread Pitch diameter 3 Pair 844 Tv
4501718 60° Metric thread Pitch diameter 3.5 Pair 844 Tv
4501719 60° Metric thread Pitch diameter 4 Pair 844 Tv
4501720 60° Metric thread Pitch diameter 4.5 Pair 844 Tv
4501721 60° Metric thread Pitch diameter 5 Pair 844 Tv
4501722 60° Metric thread Pitch diameter 5.5 Pair 844 Tv
4501723 60° Metric thread Pitch diameter 6 Pair 844 Tv

440 Multimar | Universal Measuring Instruments
