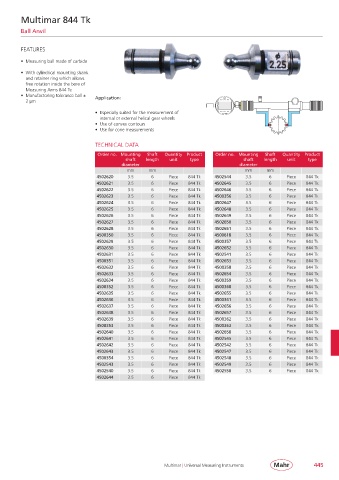

Page 449 - Mahr马尔量具完整

Multimar 844 Tk

Ball Anvil

FEATURES

• Measuring ball made of carbide
• With cylindrical mounting shank
and retainer ring which allows
free rotation inside the bore of
Measuring Arms 844 Te
• Manufactoring tolerance ball ± Application:
2 µm
• Especially suited for the measurement of MarCator 1087 BR
internal or external helical gear wheels
• Use of convex contours
• Use for cone measurements

TECHNICAL DATA
Order no. Mounting Shaft Quantity Product Order no. Mounting Shaft Quantity Product
shaft length unit type shaft length unit type
diameter diameter
mm mm mm mm
4502620 3.5 6 Piece 844 Tk 4502544 3.5 6 Piece 844 Tk
4502621 3.5 6 Piece 844 Tk 4502645 3.5 6 Piece 844 Tk
4502622 3.5 6 Piece 844 Tk 4502646 3.5 6 Piece 844 Tk
4502623 3.5 6 Piece 844 Tk 4500356 3.5 6 Piece 844 Tk
4502624 3.5 6 Piece 844 Tk 4502647 3.5 6 Piece 844 Tk
4502625 3.5 6 Piece 844 Tk 4502648 3.5 6 Piece 844 Tk
4502626 3.5 6 Piece 844 Tk 4502649 3.5 6 Piece 844 Tk
4502627 3.5 6 Piece 844 Tk 4502650 3.5 6 Piece 844 Tk
4502628 3.5 6 Piece 844 Tk 4502651 3.5 6 Piece 844 Tk
4500350 3.5 6 Piece 844 Tk 4500618 3.5 6 Piece 844 Tk
4502629 3.5 6 Piece 844 Tk 4500357 3.5 6 Piece 844 Tk
4502630 3.5 6 Piece 844 Tk 4502652 3.5 6 Piece 844 Tk
4502631 3.5 6 Piece 844 Tk 4502541 3.5 6 Piece 844 Tk
4500351 3.5 6 Piece 844 Tk 4502653 3.5 6 Piece 844 Tk
4502632 3.5 6 Piece 844 Tk 4500358 3.5 6 Piece 844 Tk
4502633 3.5 6 Piece 844 Tk 4502654 3.5 6 Piece 844 Tk
4502634 3.5 6 Piece 844 Tk 4500359 3.5 6 Piece 844 Tk
4500352 3.5 6 Piece 844 Tk 4500360 3.5 6 Piece 844 Tk
4502635 3.5 6 Piece 844 Tk 4502655 3.5 6 Piece 844 Tk
4502636 3.5 6 Piece 844 Tk 4500361 3.5 6 Piece 844 Tk
4502637 3.5 6 Piece 844 Tk 4502656 3.5 6 Piece 844 Tk
4502638 3.5 6 Piece 844 Tk 4502657 3.5 6 Piece 844 Tk
4502639 3.5 6 Piece 844 Tk 4500362 3.5 6 Piece 844 Tk
4500353 3.5 6 Piece 844 Tk 4500363 3.5 6 Piece 844 Tk
4502640 3.5 6 Piece 844 Tk 4502658 3.5 6 Piece 844 Tk
4502641 3.5 6 Piece 844 Tk 4502545 3.5 6 Piece 844 Tk
4502642 3.5 6 Piece 844 Tk 4502542 3.5 6 Piece 844 Tk
4502643 3.5 6 Piece 844 Tk 4502547 3.5 6 Piece 844 Tk
4500354 3.5 6 Piece 844 Tk 4502548 3.5 6 Piece 844 Tk
4502543 3.5 6 Piece 844 Tk 4502549 3.5 6 Piece 844 Tk
4502540 3.5 6 Piece 844 Tk 4502550 3.5 6 Piece 844 Tk
4502644 3.5 6 Piece 844 Tk

Multimar | Universal Measuring Instruments 445
