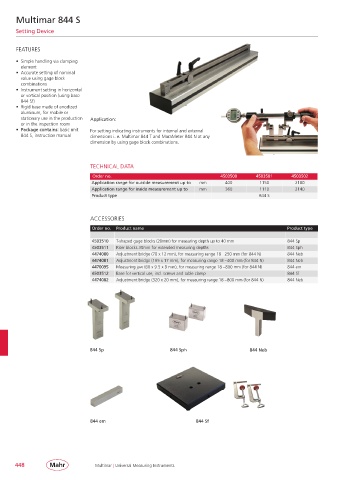

Multimar 844 S

Setting Device

FEATURES

• Simple handling via clamping
element
• Accurate setting of nominal
value using gage block
combinations
• Instrument setting in horizontal
or vertical position (using base
844 Sf)
• Rigid base made of anodized
aluminum, for mobile or
stationary use in the production Application:
or in the inspection room
• Package contains: basic unit For setting indicating instruments for internal and external
844 S, instruction manual dimensions i. e. Multimar 844 T and MaraMeter 844 N at any
dimension by using gage block combinations.

TECHNICAL DATA
Order no. 4503500 4503501 4503502
Application range for outside measurement up to mm 400 1150 2180
Application range for inside measurement up to mm 360 1110 2140
Product type 844 S

ACCESSORIES

Order no. Product name Product type

4503510 T-shaped gage blocks (20mm) for measuring depth up to 40 mm 844 Sp
4503511 Riser blocks 30mm for extended measuring depths 844 Sph
4474080 Adjustment bridge (70 x 12 mm), for measuring range 18 – 250 mm (for 844 N) 844 Neb
4474081 Adjustment bridge (165 x 17 mm), for measuring range 18 – 400 mm (for 844 N) 844 Neb
4470095 Measuring jaw (60 x 9.5 x 9 mm), for measuring range 18 – 800 mm (for 844 N) 844 em
4503512 Base for vertical use, incl. screws and table clamp 844 Sf
4474082 Adjustment bridge (320 x 20 mm), for measuring range 18 – 800 mm (for 844 N) 844 Neb

844 Sp 844 Sph 844 Neb

844 em 844 Sf
