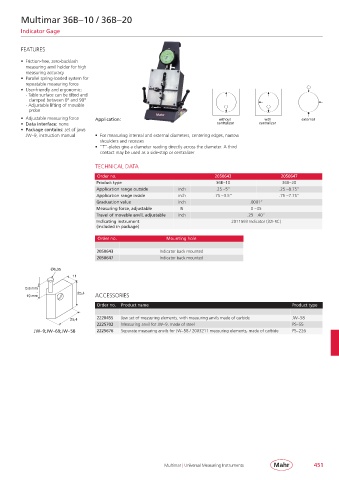

Multimar 36B– 10 / 36B– 20

Indicator Gage

FEATURES

• Friction-free, zero-backlash
measuring anvil holder for high
measuring accuracy
• Parallel spring-loaded system for
repeatable measuring force
• User-friendly and ergonomic:
- Table surface can be tilted and
clamped between 0° and 90°
- Adjustable lifting of movable
probe
• Adjustable measuring force Application: without with external
• Data interface: none centralizer centralizer
• Package contains: set of jaws
JW– 9, instruction manual • For measuring internal and external diameters, centering edges, narrow
shoulders and recesses
• “T”-plates give a diameter reading directly across the diameter. A third
contact may be used as a side-stop or centralizer

TECHNICAL DATA
Order no. 2050643 2050647
Product type 36B– 10 36B– 20
Application range outside inch .25 – 5” .25 – 8.75”
Application range inside inch .75 – 3.5” .75 – 7.75”
Graduation value inch .0001’’
Measuring force, adjustable N 0 – 35
Travel of moveble anvil, adjustable inch .25 – .40”
Indicating instrument 2011593 Indicator (32I-RC)
(included in package)

Order no. Mounting hole

2050643 Indicator back mounted
2050647 Indicator back mounted
Ø6,35
11

0,8 mm
- 25,4
19 mm ACCESSORIES
Order no. Product name Product type

25,4 2220455 Jaw set of measuring elements, with measuring anvils made of carbide JW– 58
2225702 Measuring anvil for JW– 9, made of steel PS– 55
JW– 9;JW– 69;JW– 58 2225676 Separate measuring anvils for JW– 58 / 2003211 measuring elements, made of carbide PS– 226

Multimar | Universal Measuring Instruments 451
