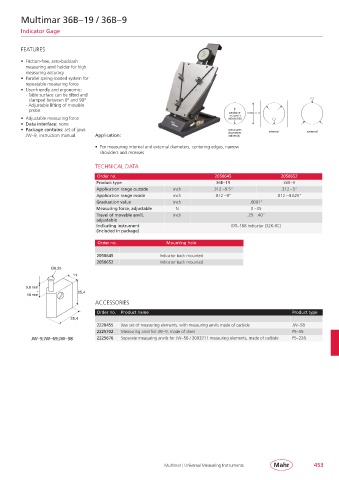

Multimar 36B– 19 / 36B– 9

Indicator Gage

FEATURES

• Friction-free, zero-backlash
measuring anvil holder for high
measuring accuracy
• Parallel spring-loaded system for
repeatable measuring force
• User-friendly and ergonomic:
- Table surface can be tilted and
clamped between 0° and 90°
- Adjustable lifting of movable
probe
DISTANCE DIAMETER
ACTUALLY
• Adjustable measuring force MEASURED
• Data interface: none
• Package contains: set of jaws measures internal external
diameter
JW– 9, instruction manual Application: indirectly
• For measuring internal and external diameters, centering edges, narrow
shoulders and recesses

TECHNICAL DATA
Order no. 2050645 2050652
Product type 36B– 19 36B– 9
Application range outside inch .312 – 9.5” .312 – 5”
Application range inside inch .812 – 9” .812 – 4.625”
Graduation value inch .0001’’
Measuring force, adjustable N 0 – 35
Travel of moveble anvil, inch .25 – .40”
adjustable
Indicating instrument IDT– 188 Indicator (32K-RC)
(included in package)

Order no. Mounting hole

2050645 Indicator back mounted
2050652 Indicator back mounted
Ø6,35
11
0,8 mm
- 25,4
19 mm
ACCESSORIES
Order no. Product name Product type
25,4
2220455 Jaw set of measuring elements, with measuring anvils made of carbide JW– 58
2225702 Measuring anvil for JW– 9, made of steel PS– 55
JW– 9;JW– 69;JW– 58 2225676 Separate measuring anvils for JW– 58 / 2003211 measuring elements, made of carbide PS– 226

Multimar | Universal Measuring Instruments 453
