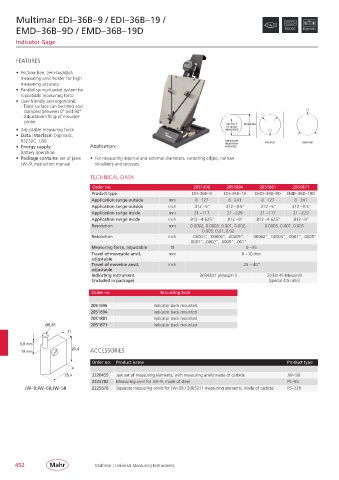

Multimar EDI– 36B– 9 / EDI– 36B– 19 /

EMD– 36B– 9D / EMD– 36B– 19D
Indicator Gage

FEATURES
• Friction-free, zero-backlash
measuring anvil holder for high
measuring accuracy
• Parallel spring-loaded system for
repeatable measuring force
• User-friendly and ergonomic:
- Table surface can be tilted and
clamped between 0° and 90°
- Adjustable lifting of movable
probe DISTANCE DIAMETER
ACTUALLY
• Adjustable measuring force MEASURED
• Data interface: Digimatic,
RS232C, USB measures internal external
diameter
• Energy supply: Application: indirectly
Battery operation
• Package contains: set of jaws • For measuring internal and external diameters, centering edges, narrow
JW– 9, instruction manual shoulders and recesses

TECHNICAL DATA
Order no. 2051696 2051694 2051881 2051871
Product type EDI– 36B– 9 EDI– 36B– 19 EMD– 36B– 9D EMD– 36B– 19D
Application range outside mm 8 – 127 8 – 241 8 – 127 8 – 241
Application range outside inch .312 – 5” .312 – 9.5” .312 – 5” .312 – 9.5”
Application range inside mm 21 – 117 21 – 229 21 – 117 21 – 229
Application range inside inch .812 – 4.625” .812 – 9” .812 – 4.625” .812 – 9”
Resolution mm 0.0002, 0.0005, 0.001, 0.002, 0.0005, 0.001, 0.005
0.005, 0.01, 0.02
Resolution inch .00001”, .00002”, .00005”, .00002”, .00005”, .0001”, .0005”
.0001”, .0002”, .0005”, .001”
Measuring force, adjustable N 0 – 35
Travel of moveable anvil, mm 6 – 10 mm
adjustable
Travel of moveble anvil, inch .25 – .40”
adjustable
Indicating instrument 2034201 µMaxµm II 2033145 MaxumIII
(included in package) (special 4:5 ratio)

Order no. Mounting hole

2051696 Indicator back mounted
2051694 Indicator back mounted
2051881 Indicator back mounted
Ø6,35 2051871 Indicator back mounted
11

0,8 mm
- 25,4
19 mm ACCESSORIES
Order no. Product name Product type

25,4 2220455 Jaw set of measuring elements, with measuring anvils made of carbide JW– 58
2225702 Measuring anvil for JW– 9, made of steel PS– 55
JW– 9;JW– 69;JW– 58 2225676 Separate measuring anvils for JW– 58 / 2003211 measuring elements, made of carbide PS– 226

452 Multimar | Universal Measuring Instruments
