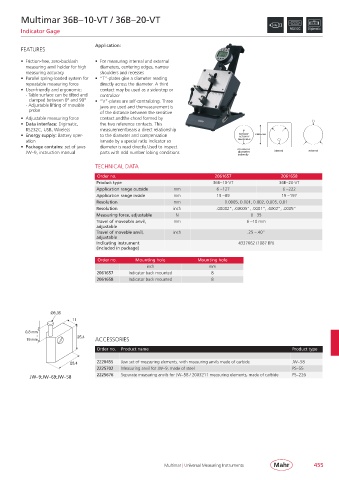

Multimar 36B– 10-VT / 36B– 20-VT

Indicator Gage

Application:
FEATURES

• Friction-free, zero-backlash • For measuring internal and external
measuring anvil holder for high diameters, centering edges, narrow
measuring accuracy shoulders and recesses
• Parallel spring-loaded system for • “T”-plates give a diameter reading
repeatable measuring force directly across the diameter. A third
• User-friendly and ergonomic: contact may be used as a side-stop or
- Table surface can be tilted and centralizer
clamped between 0° and 90° • “V”-plates are self-centralizing. Three
- Adjustable lifting of movable jaws are used and themeasurement is
probe
of the distance between the sensitive
• Adjustable measuring force contact andthe chord formed by
• Data interface: Digimatic, the two reference contacts. This
RS232C, USB, Wireless measurementbears a direct relationship
• Energy supply: Battery oper- to the diameter and compensation DISTANCE DIAMETER
ACTUALLY
ation ismade by a special ratio indicator so MEASURED
• Package contains: set of jaws diameter is read directly.Used to inspect measures
JW– 9, instruction manual parts with odd number lobing conditions diameter internal external
indirectly
TECHNICAL DATA
Order no. 2061657 2061658
Product type 36B– 10-VT 36B– 20-VT
Application range outside mm 6 – 127 6 – 222
Application range inside mm 19 – 89 19 – 197
Resolution mm 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inch .00002”, .00005”, .0001”, .0002”, .0005”
Measuring force, adjustable N 0 – 35
Travel of moveable anvil, mm 6 – 10 mm
adjustable
Travel of moveble anvil, inch .25 – .40”
adjustable
Indicating instrument 4337662 (1087 BR)
(included in package)
Order no. Mounting hole Mounting hole
inch mm
2061657 Indicator back mounted 8
2061658 Indicator back mounted 8

Ø6,35
11
0,8 mm
- 25,4
19 mm ACCESSORIES
Order no. Product name Product type

25,4 2220455 Jaw set of measuring elements, with measuring anvils made of carbide JW– 58
2225702 Measuring anvil for JW– 9, made of steel PS– 55
JW– 9;JW– 69;JW– 58 2225676 Separate measuring anvils for JW– 58 / 2003211 measuring elements, made of carbide PS– 226

Multimar | Universal Measuring Instruments 455
