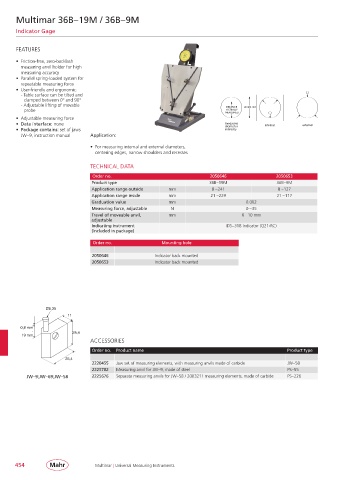

Multimar 36B– 19M / 36B– 9M

Indicator Gage

FEATURES

• Friction-free, zero-backlash
measuring anvil holder for high
measuring accuracy
• Parallel spring-loaded system for
repeatable measuring force
• User-friendly and ergonomic:
- Table surface can be tilted and
clamped between 0° and 90°
- Adjustable lifting of movable DISTANCE DIAMETER
probe ACTUALLY
MEASURED
• Adjustable measuring force
• Data interface: none measures internal external
diameter
• Package contains: set of jaws indirectly
JW– 9, instruction manual Application:
• For measuring internal and external diameters,
centering edges, narrow shoulders and recesses

TECHNICAL DATA
Order no. 2050646 2050653
Product type 36B– 19M 36B– 9M
Application range outside mm 8 – 241 8 – 127
Application range inside mm 21 – 229 21 – 117
Graduation value mm 0.002
Measuring force, adjustable N 0 – 35
Travel of moveable anvil, mm 6 – 10 mm
adjustable
Indicating instrument IDS– 318 Indicator (Q21-RC)
(included in package)

Order no. Mounting hole

2050646 Indicator back mounted
2050653 Indicator back mounted

Ø6,35
11
0,8 mm
- 25,4
19 mm
ACCESSORIES
Order no. Product name Product type

25,4
2220455 Jaw set of measuring elements, with measuring anvils made of carbide JW– 58
2225702 Measuring anvil for JW– 9, made of steel PS– 55
JW– 9;JW– 69;JW– 58 2225676 Separate measuring anvils for JW– 58 / 2003211 measuring elements, made of carbide PS– 226

454 Multimar | Universal Measuring Instruments
