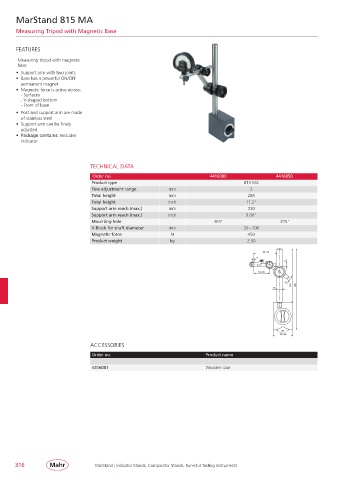

P. 320
MarStand 815 MA
Measuring Tripod with Magnetic Base
FEATURES
Measuring tripod with magnetic
base
• Support arm with two joints
• Base has a powerful ON/OFF
permanent magnet
• Magnetic force is active across:
- Surfaces
- V-shaped bottom
- Front of base
• Post and support arm are made
of stainless steel
• Support arm can be finely
adjusted
• Package contains: excludes
indicator
TECHNICAL DATA
Order no. 4416000 4416050
Product type 815 MA
Fine adjustment range mm 2
Total height mm 285
Total height inch 11.2”
Support arm reach (max.) mm 230
Support arm reach (max.) inch 9.06”
Mounting hole 8H7 .375”
V-Block for shaft diameter mm 20 – 100
Magnetic force N 450
Product weight kg 2.50
40-230
8
11
50-100
14
220 285
18
140
70 x 46
ACCESSORIES
Order no. Product name
4416001 Wooden case
316 MarStand | Indicator Stands, Comparator Stands, Run-Out Testing Instruments
