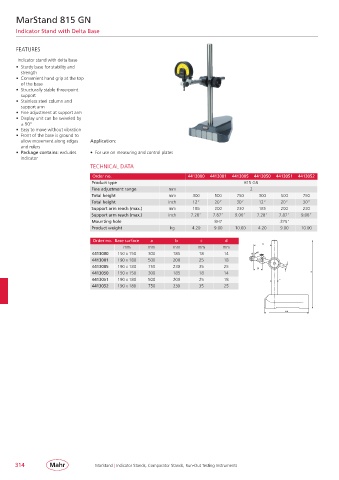

MarStand 815 GN

Indicator Stand with Delta Base

FEATURES

Indicator stand with delta base
• Sturdy base for stability and
strength
• Convenient hand grip at the top
of the base
• Structurally stable three-point
support
• Stainless steel column and
support arm
• Fine adjustment at support arm
• Display unit can be swiveled by
± 90°
• Easy to move without vibration
• Front of the base is ground to
allow movement along edges Application:
and rulers
• Package contains: excludes • For use on measuring and control plates
indicator
TECHNICAL DATA
Order no. 4413000 4413001 4413005 4413050 4413051 4413052
Product type 815 GN
Fine adjustment range mm 2
Total height mm 300 500 750 300 500 750
Total height inch 12” 20” 30” 12” 20” 30”
Support arm reach (max.) mm 185 200 230 185 200 230
Support arm reach (max.) inch 7.28” 7.87” 9.06” 7.28” 7.87” 9.06”
Mounting hole 8H7 .375”
Product weight kg 4.20 9.00 10.00 4.20 9.00 10.00

Order no. Base surface a b c d
b
mm mm mm mm mm
4413000 150 x 150 300 185 18 14 ø8
4413001 190 x 180 500 200 25 18
4413005 190 x 180 750 230 35 25 34 d
4413050 150 x 150 300 185 18 14 a
4413051 190 x 180 500 200 25 18 c
4413052 190 x 180 750 230 35 25

e

314 MarStand | Indicator Stands, Comparator Stands, Run-Out Testing Instruments
