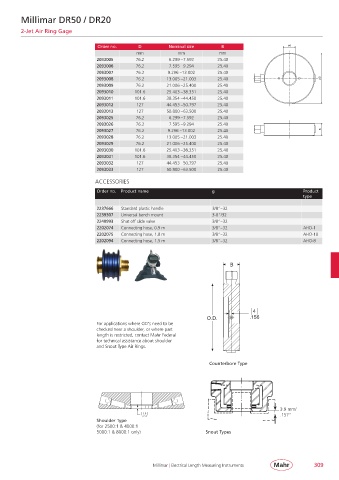

Millimar DR50 / DR20

2-Jet Air Ring Gage

Order no. D Nominal size B ød
mm mm mm
2093005 76.2 6.299 – 7.592 25.40
2093006 76.2 7.595 – 9.294 25.40
2093007 76.2 9.296 – 13.002 25.40
2093008 76.2 13.005 – 21.003 25.40 øD
2093009 76.2 21.006 – 25.400 25.40
2093010 101.6 25.403 – 38.351 25.40
2093011 101.6 38.354 – 44.450 25.40
2093012 127 44.453 – 50.797 25.40
2093013 127 50.800 – 63.500 25.40
2093025 76.2 6.299 – 7.592 25.40
2093026 76.2 7.595 – 9.294 25.40
2093027 76.2 9.296 – 13.002 25.40 B
2093028 76.2 13.005 – 21.003 25.40
2093029 76.2 21.006 – 25.400 25.40
2093030 101.6 25.403 – 38.351 25.40
2093031 101.6 38.354 – 44.450 25.40
2093032 127 44.453 – 50.797 25.40
2093033 127 50.800 – 63.500 25.40
ACCESSORIES
Order no. Product name g Product
type

2237666 Standard plastic handle 3/8“– 32
2239307 Universal bench mount 3-8“/32
2240993 Shut off slide valve 3/8“– 32
2202074 Connecting hose, 0.9 m 3/8“– 32 AHO-1
2202075 Connecting hose, 1.8 m 3/8“– 32 AHO-10
2202094 Connecting hose, 1.5 m 3/8“– 32 AHO-8

B

4
O.D. .156
For applications where OD's need to be
checked near a shoulder, or where part
length is restricted, contact Mahr Federal
for technical assistance about shoulder
and Snout Type Air Rings.

Counterbore Type

3.9 mm/
1.9
.075 .157”
Shoulder Type
(for 2500:1 & 4000:1
5000:1 & 8000:1 only) Snout Types

Millimar | Electrical Length Measuring Instruments 309
