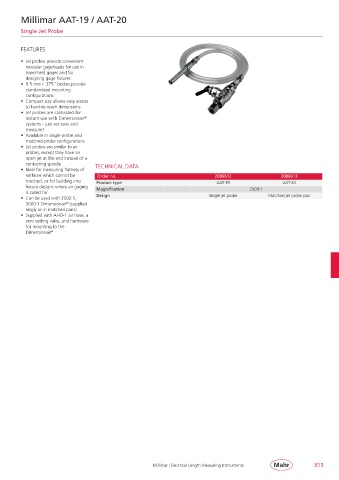

Millimar AAT-19 / AAT-20

Single Jet Probe

FEATURES

• Jet probes provide convenient
modular gageheads for use in
hand-held gages and for
designing gage fixtures
• 9.5 mm / .375” bodies provide
standardized mounting
configurations
• Compact size allows easy access
to hard-to-reach dimensions
• Jet probes are calibrated for
®
instant use with Dimensionair
systems - just set zero and
measure!
• Available in single-probe and
matched-probe configurations
• Jet probes are similar to air
probes, except they have an
open jet at the end instead of a
contacting spindle TECHNICAL DATA
• Ideal for measuring flatness of
surfaces which cannot be Order no. 2086612 2086613
touched, or for building into Product type AAT-19 AAT-20
fixture designs where air gaging Magnification 2500:1
is called for
• Can be used with 2500:1, Design Single jet probe Matched jet probe pair
®
5000:1 Dimensionair (supplied
singly or in matched pairs)
• Supplied with AHO-1 air hose, a
zero setting valve, and hardware
for mounting to the
Dimensionair ®
