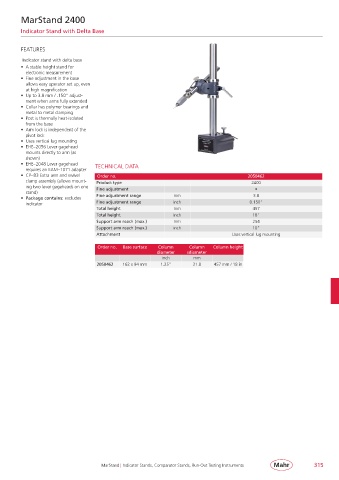

MarStand 2400

Indicator Stand with Delta Base

FEATURES

Indicator stand with delta base
• A stable height stand for
elec tronic measurement
• Fine adjustment in the base
allows easy operator set up, even
at high magnification
• Up to 3.8 mm / .150“ adjust-
ment when arms fully extended
• Collar has polymer bearings and
metal to metal clamping
• Post is thermally heat-isolated
from the base
• Arm lock is independent of the
pivot lock
• Uses vertical lug mounting
• EHE– 2056 Lever gagehead
mounts directly to arm (as
shown)
• EHE– 2048 Lever gagehead TECHNICAL DATA
requires an EAM– 1071 adapter
• CP– 83 Extra arm and swivel Order no. 2050462
clamp assembly (allows mount- Product type 2400
ing two lever gageheads on one Fine adjustment •
stand)
• Package contains: excludes Fine adjustment range mm 3.8
indicator Fine adjustment range inch 0.150”
Total height mm 457
Total height inch 18”
Support arm reach (max.) mm 254
Support arm reach (max.) inch 10”
Attachment Uses vertical lug mounting

Order no. Base surface Column Column Column height
diameter sdiameter
inch mm
2050462 162 x 94 mm 1.25” 31.8 457 mm / 18 in

MarStand | Indicator Stands, Comparator Stands, Run-Out Testing Instruments 315
