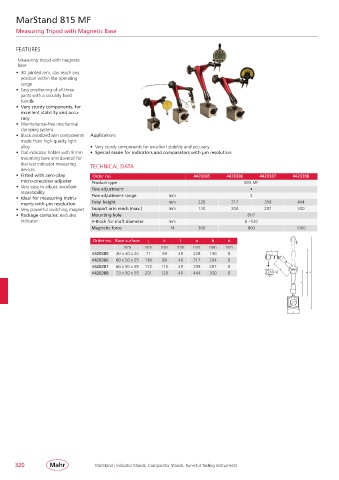

MarStand 815 MF

Measuring Tripod with Magnetic Base

FEATURES

Measuring tripod with magnetic
base
• 3D jointed arm, can reach any
position within the operating
range
• Easy positioning of all three
joints with a securely fixed
handle
• Very sturdy components, for
excellent stability and accu-
racy
• Maintenance-free mechanical
clamping system
• Black anodized arm components Application:
made from high-quality light
alloy • Very sturdy components for excellent stability and accuracy
• Dial indicator holder with 8 mm • Special made for indicators and comparators with µm resolution
mounting bore and dovetail for
dial test indicator measuring TECHNICAL DATA
devices
• Fitted with zero-play Order no. 4420385 4420386 4420387 4420388
micro-precision adjuster Product type 815 MF
• Very easy to adjust, excellent Fine adjustment •
repeatability
• Ideal for measuring instru- Fine adjustment range mm 2
ments with µm resolution Total height mm 228 317 399 444
• Very powerful switching magnet Support arm reach (max.) mm 130 204 287 330
• Package contains: excludes Mounting hole 8H7
indicator V-Block for shaft diameter mm 6 – 120
Magnetic force N 300 800 1000

Order no. Base surface j k l a b d
mm mm mm mm mm mm mm
4420385 40 x 40 x 40 71 59 49 228 130 8
4420386 60 x 50 x 55 116 88 49 317 204 8
4420387 60 x 50 x 55 172 115 49 399 287 8
4420388 73 x 50 x 55 201 129 49 444 330 8

320 MarStand | Indicator Stands, Comparator Stands, Run-Out Testing Instruments
