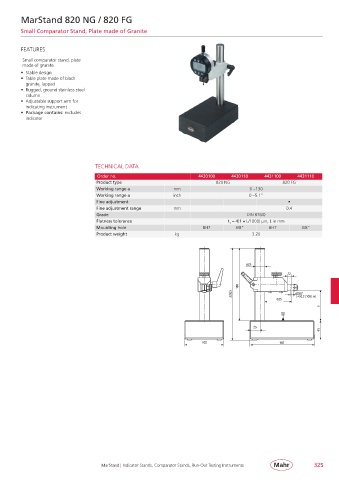

MarStand 820 NG / 820 FG
Small Comparator Stand, Plate made of Granite
FEATURES
Small comparator stand, plate
made of granite
• Stable design
• Table plate made of black
gran ite, lapped
• Rugged, ground stainless steel
column
• Adjustable support arm for
indicating instrument
• Package contains: excludes
indicator
TECHNICAL DATA
Order no. 4430100 4430110 4431100 4431110
Product type 820 NG 820 FG
Working range a mm 0 – 130
Working range a inch 0 – 5.1”
Fine adjustment •
Fine adjustment range mm 0.4
Grade DIN 876/0
Flatness tolerance t = 4(1 + L/1000) µm, L in mm
1
Mounting hole 8H7 3/8” 8H7 3/8”
Product weight kg 3.20
ø25
12
180
228,5 ø8H7
0,2 100 A
67,5
a
A
25
45
100 160
MarStand | Indicator Stands, Comparator Stands, Run-Out Testing Instruments 325
