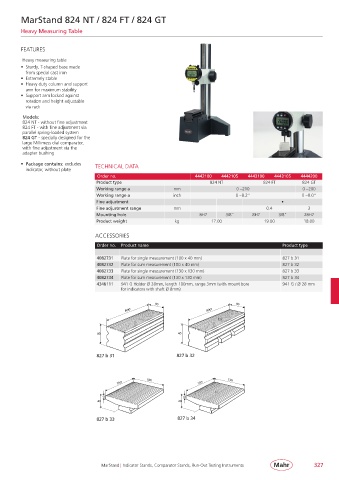

MarStand 824 NT / 824 FT / 824 GT

Heavy Measuring Table

FEATURES

Heavy measuring table
• Sturdy, T-shaped base made
from special cast iron
• Extremely stable
• Heavy duty column and support
arm for maximum stability
• Support arm locked against
rotation and height adjustable
via rack
Models:
824 NT - without fine adjustment
824 FT - with fine adjustment via
parallel spring-loaded system
824 GT - specially designed for the
large Millimess dial comparator,
with fine adjustment via the
adapt er bushing
• Package contains: excludes TECHNICAL DATA
indicator, without plate
Order no. 4442100 4442105 4443100 4443105 4444200
Product type 824 NT 824 FT 824 GT
Working range a mm 0 – 210 0 – 200
Working range a inch 0 – 8.2” 0 – 8.0”
Fine adjustment •
Fine adjustment range mm 0.4 3
Mounting hole 8H7 3/8” 8H7 3/8” 28H7
Product weight kg 17.00 19.00 18.00

ACCESSORIES
Order no. Product name Product type

4082731 Plate for single measurement (100 x 40 mm) 827 b 31
4082732 Plate for sum measurement (100 x 40 mm) 827 b 32
4082733 Plate for single measurement (130 x 130 mm) 827 b 33
4082734 Plate for sum measurement (130 x 130 mm) 827 b 34
4346111 941 G Holder Ø 28mm, length 100mm, range 3mm (with mount bore 941 G / Ø 28 mm
for indicators with shaft Ø 8mm)

40 40
100 100

40 40

827 b 31 827 b 32

130 130
130 130

12 12
40 40

827 b 33 827 b 34

MarStand | Indicator Stands, Comparator Stands, Run-Out Testing Instruments 327
