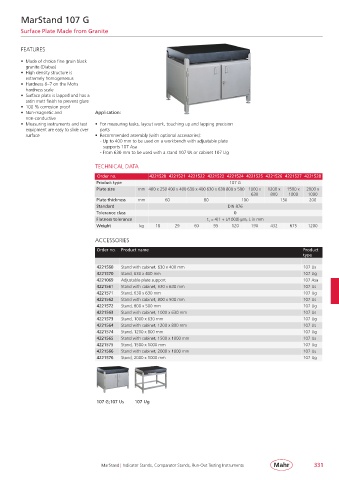

MarStand 107 G

Surface Plate Made from Granite

FEATURES

• Made of choice fine grain black
granite (Diabas)
• High density structure is
extremely homogeneous
• Hardness 6– 7 on the Mohs
hardness scale
• Surface plate is lapped and has a
satin matt finish to prevent glare
• 100 % corrosion proof
• Non-magnetic and Application:
non-conductive
• Measuring instruments and test • For measuring tasks, layout work, touching up and lapping precision
equipment are easy to slide over parts
surface • Recommended assembly (with optional accessories):
- Up to 400 mm to be used on a workbench with adjustable plate
supports 107 Asa
- From 630 mm to be used with a stand 107 Us or cabinet 107 Ug

TECHNICAL DATA
Order no. 4221520 4221521 4221522 4221523 4221524 4221525 4221526 4221527 4221528
Product type 107 G
Plate size mm 400 x 250 400 x 400 630 x 400 630 x 630 800 x 500 1000 x 1200 x 1500 x 2000 x
630 800 1000 1000
Plate thickness mm 60 80 100 150 200
Standard DIN 876
Tolerance class 0
Flatness tolerance t = 4(1 + L/1000) µm, L in mm
1
Weight kg 18 29 60 95 120 190 432 675 1200
ACCESSORIES
Order no. Product name Product
type

4221560 Stand with cabinet, 630 x 400 mm 107 Us
4221570 Stand, 630 x 400 mm 107 Ug
4221069 Adjustable plate support 107 Asa
4221561 Stand with cabinet, 630 x 630 mm 107 Us
4221571 Stand, 630 x 630 mm 107 Ug
4221562 Stand with cabinet, 800 x 500 mm 107 Us
4221572 Stand, 800 x 500 mm 107 Ug
4221563 Stand with cabinet, 1000 x 630 mm 107 Us
4221573 Stand, 1000 x 630 mm 107 Ug
4221564 Stand with cabinet, 1200 x 800 mm 107 Us
4221574 Stand, 1200 x 800 mm 107 Ug
4221565 Stand with cabinet, 1500 x 1000 mm 107 Us
4221575 Stand, 1500 x 1000 mm 107 Ug
4221566 Stand with cabinet, 2000 x 1000 mm 107 Us
4221576 Stand, 2000 x 1000 mm 107 Ug

107 G;107 Us 107 Ug

MarStand | Indicator Stands, Comparator Stands, Run-Out Testing Instruments 331
