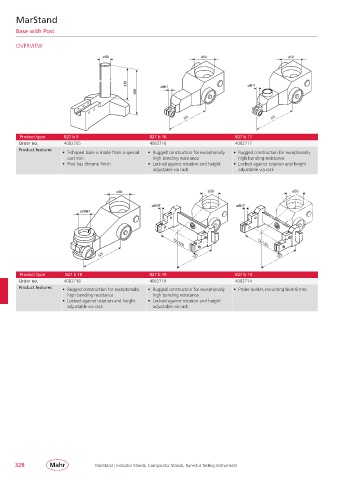

P. 332
MarStand
Base with Post
OVERVIEW
ø50 ø50 ø50
330 ø8H7 ø8H7
400
125 125
Product type 827 b 5 827 b 16 827 b 17
Order no. 4082705 4082716 4082717
Product features
• T-shaped base is made from a special • Rugged con struction for exceptionally • Rugged construction for exceptionally
cast iron high bending resistance high bending resistance
• Post has chrome finish • Locked against rotation and height • Locked against rotation and height
adjustable via rack adjustable via rack
ø50 ø50 ø50
ø8H7 ø8H7
ø28H7
125 12-120 125 12-120 125
Product type 827 b 18 827 b 19 827 b 14
Order no. 4082718 4082719 4082714
Product features • Rugged construction for exceptionally • Rugged construction for exceptionally • Probe holder, mounting hole 8 mm
high bending resistance high bending resistance
• Locked against rotation and height • Locked against rotation and height
adjustable via rack adjustable via rack
328 MarStand | Indicator Stands, Comparator Stands, Run-Out Testing Instruments
