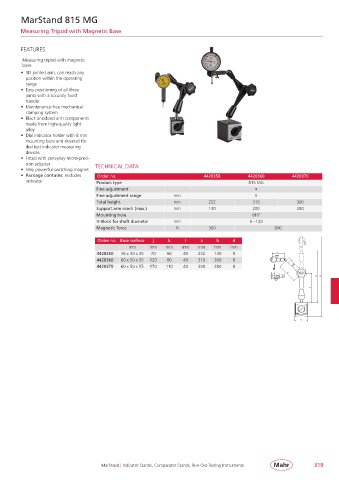

MarStand 815 MG

Measuring Tripod with Magnetic Base

FEATURES

Measuring tripod with magnetic
base
• 3D jointed arm, can reach any
position within the operating
range
• Easy positioning of all three
joints with a securely fixed
handle
• Maintenance-free mechanical
clamping system
• Black anodized arm components
made from high-quality light
alloy
• Dial indicator holder with 8 mm
mounting bore and dovetail for
dial test indicator measuring
devices
• Fitted with zero-play micro-preci-
sion adjuster TECHNICAL DATA
• Very powerful switching magnet
• Package contains: excludes Order no. 4420350 4420360 4420370
indicator Product type 815 MG
Fine adjustment •
Fine adjustment range mm 5
Total height mm 222 310 390
Support arm reach (max.) mm 130 200 280
Mounting hole 8H7
V-Block for shaft diameter mm 6 – 120
Magnetic force N 300 800

Order no. Base surface j k l a b d
mm mm mm mm mm mm mm
4420350 36 x 30 x 35 70 60 49 222 130 8
4420360 60 x 50 x 55 120 80 49 310 200 8
4420370 60 x 50 x 55 170 110 49 390 280 8
