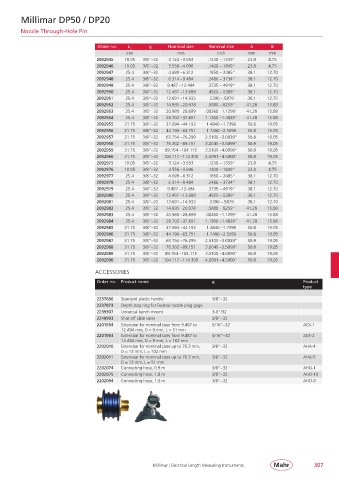

Millimar DP50 / DP20

Nozzle Through-Hole Pin

Order no. L g Nominal size Nominal size A B
2
mm mm inch mm mm
2092945 19.05 3/8“– 32 3.124 – 3.553 .1230 – .1339“ 23.8 4.75
2092946 19.05 3/8“– 32 3.556 – 4.696 .1400 – .1849“ 23.8 4.75
2092947 25.4 3/8“– 32 4.699 – 6.312 .1850 – .2485“ 38.1 12.70
2092948 25.4 3/8“– 32 6.314 – 9.484 .2486 – .3734“ 38.1 12.70
2092949 25.4 3/8“– 32 9.487 – 12.494 .3735 – .4919“ 38.1 12.70
2092950 25.4 3/8“– 32 12.497 – 13.688 .4920 – .5389“ 38.1 12.70
2092951 25.4 3/8“– 32 13.691 – 14.933 .5390 – .5879 38.1 12.70
2092952 25.4 3/8“– 32 14.935 – 20.978 .5880 – .8259“ 41.28 15.88
2092953 25.4 3/8“– 32 20.980 – 28.699 .08260 – 1.1299“ 41.28 15.88
2092954 25.4 3/8“– 32 28.702 – 37.691 1.1300 – 1.4839“ 41.28 15.88
2092955 31.75 3/8“– 32 37.694 – 44.193 1.4840 – 1.7399 50.8 19.05
2092956 31.75 3/8“– 32 44.196 – 63.751 1.7400 – 2.5099 50.8 19.05
2092957 31.75 3/8“– 32 63.754 – 76.299 2.5100 – 3.0039“ 50.8 19.05
2092958 31.75 3/8“– 32 76.302 – 89.151 3.0040 – 3.5099“ 50.8 19.05
2092959 31.75 3/8“– 32 89.154 – 104.115 3.5100 – 4.0990“ 50.8 19.05
2092960 31.75 3/8“– 32 104.117 – 114.300 4.0991 – 4.5000“ 50.8 19.05
2092975 19.05 3/8“– 32 3.124 – 3.553 .1230 – .1339“ 23.8 4.75
2092976 19.05 3/8“– 32 3.556 – 4.696 .1400 – .1849“ 23.8 4.75
2092977 25.4 3/8“– 32 4.699 – 6.312 .1850 – .2485“ 38.1 12.70
2092978 25.4 3/8“– 32 6.314 – 9.484 .2486 – .3734“ 38.1 12.70
2092979 25.4 3/8“– 32 9.487 – 12.494 .3735 – .4919“ 38.1 12.70
2092980 25.4 3/8“– 32 12.497 – 13.688 .4920 – .5389“ 38.1 12.70
2092981 25.4 3/8“– 32 13.691 – 14.933 .5390 – .5879 38.1 12.70
2092982 25.4 3/8“– 32 14.935 – 20.978 .5880 – .8259“ 41.28 15.88
2092983 25.4 3/8“– 32 20.980 – 28.699 .08260 – 1.1299“ 41.28 15.88
2092984 25.4 3/8“– 32 28.702 – 37.691 1.1300 – 1.4839“ 41.28 15.88
2092985 31.75 3/8“– 32 37.694 – 44.193 1.4840 – 1.7399 50.8 19.05
2092986 31.75 3/8“– 32 44.196 – 63.751 1.7400 – 2.5099 50.8 19.05
2092987 31.75 3/8“– 32 63.754 – 76.299 2.5100 – 3.0039“ 50.8 19.05
2092988 31.75 3/8“– 32 76.302 – 89.151 3.0040 – 3.5099“ 50.8 19.05
2092989 31.75 3/8“– 32 89.154 – 104.115 3.5100 – 4.0990“ 50.8 19.05
2092990 31.75 3/8“– 32 104.117 – 114.300 4.0991 – 4.5000“ 50.8 19.05

ACCESSORIES
Order no. Product name g Product
type

2237666 Standard plastic handle 3/8“– 32
2237873 Depth stop ring for Federal nozzle plug gage
2239307 Universal bench mount 3-8“/32
2240993 Shut off slide valve 3/8“– 32
2201954 Extension for nominal sizes from 9.487 to 5/16“– 32 AEX-1
12.494 mm, D = 9 mm, L = 51 mm
2201963 Extension for nominal sizes from 9.487 to 5/16“– 32 AEX-2
12.494 mm, D = 9 mm, L = 102 mm
2202010 Extension for nominal sizes up to 76.3 mm, 3/8“– 32 AHA-4
D = 12 mm, L = 102 mm
2202011 Extension for nominal sizes up to 76.3 mm, 3/8“– 32 AHA-5
D = 12 mm, L = 51 mm
2202074 Connecting hose, 0.9 m 3/8“– 32 AHO-1
2202075 Connecting hose, 1.8 m 3/8“– 32 AHO-10
2202094 Connecting hose, 1.5 m 3/8“– 32 AHO-8

Millimar | Electrical Length Measuring Instruments 307
