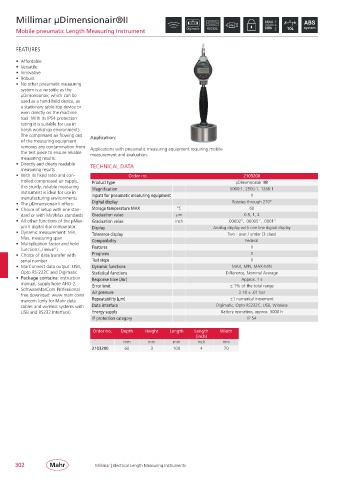

Millimar µDimensionair®II

Mobile pneumatic Length Measuring Instrument

FEATURES

• Affordable
• Versatile
• Innovative
• Robust
• No other pneumatic measuring
system is a versatile as the
μDimensionair, which can be
used as a hand-held device, as
a stationary table-top device or
even directly on the machine
tool. With its IP54 protection
rating it is suitable for use in
harsh workshop environments.
The compressed air flowing out Application:
of the measuring equipment
removes any contamination from Applications with pneumatic measuring equipment requiring mobile
the test piece to ensure reliable measurement and evaluation.
measuring results.
• Directly and clearly readable TECHNICAL DATA
measuring results.
• With its fixed ratio and con- Order no. 2103200
trolled compressed air supply, Product type µDimensionair II®
this sturdy, reliable measuring Magnification 5000:1, 2500:1, 1260:1
instrument is ideal for use in Inputs for pneumatic measuring equipment 1
manufacturing environments.
• The μDimensionair II offers: Digital display Rotates through 270°
• Choice of setup with one stan- Storage temperature MAX °C 60
dard or with Min/Max standards Graduation value µm 0.5, 1, 2
• All other functions of the μMax- Graduation value inch .00002‘‘, .00005“, .0001‘‘
μm II digital dial comparator: Display Analog display with one line digital display
• Dynamic measurement: Min, Tolerance display Two - over / under (3 class)
Max, measuring span Compatibility Federal
• Multiplication factor and hold
function („freeze“) Features 1
• Choice of data transfer with Programs 1
serial number Test steps 1
• MarConnect data output: USB, Dynamic functions MAX, MIN, MAX-MIN
Opto RS-232C and Digimatic Statistical functions Difference, Nominal Average
• Package contains: instruction Response time (Air) Approx. 1 s
manual, supply hose AHO-2 Error limit ± 1% of the total range
• SoftwareMarCom Professional Air pressure 2.10 ± .01 bar
free download: www.mahr.com/
marcom (only for Mahr data Repeatability [µm] ±1 numerical increment
cables and wireless systems with Data interface Digimatic, Opto RS232C, USB, Wireless
USB and RS232 interface) Energy supply Battery operation, approx. 3000 h
IP protection category IP 54

Order no. Depth Height Length Length Width
(inch)
mm mm mm inch mm
2103200 60 3 100 4 70
