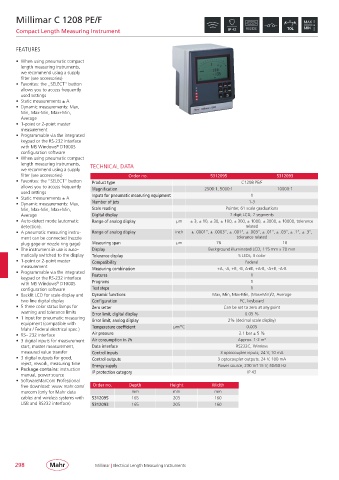

Millimar C 1208 PE/F

Compact Length Measuring Instrument

FEATURES

• When using pneumatic compact
length measuring instruments,
we recommend using a supply
filter (see accessories)
• Favorites: the „SELECT“ button
allows you to access frequently
used settings
• Static measurements ± A
• Dynamic measurements: Max,
Min, Max-Min, Max+Min,
Average
• 1-point or 2-point master
measurement
• Programmable via the integrated
keypad or the RS-232 interface
with MS Windows D1000S
®
configuration software
• When using pneumatic compact
length measuring instruments, TECHNICAL DATA
we recommend using a supply
filter (see accessories) Order no. 5312095 5312093
• Favorites: the “SELECT” button Product type C1208 PE/F
allows you to access frequently Magnification 2500:1, 5000:1 10000:1
used settings
• Static measurements ± A Inputs for pneumatic measuring equipment 1
• Dynamic measurements: Max, Number of jets 1-3
Min, Max-Min, Max+Min, Scale reading Pointer, 61 scale graduations
Average Digital display 7 digit LCD, 7 segments
• Auto-detect mode (automatic Range of analog display µm ± 3, ± 10, ± 30, ± 100, ± 300, ± 1000, ± 3000, ± 10000, tolerance
detection). related
• A pneumatic measuring instru- Range of analog display inch ± .0001‘‘, ± .0003“, ± .001‘‘, ± .003‘‘, ± .01‘‘, ± .03‘‘, ± .1‘‘, ± .3‘‘,
ment can be connected (nozzle tolerance related
plug gage or nozzle ring gage) Measuring span µm 76 16
• The instrument in use is auto- Display Background illuminated LCD, 115 mm x 70 mm
matically switched to the display Tolerance display 5 LEDs, 3 color
• 1-point or 2-point master Compatibility Federal
measurement Measuring combination +A, -A, +B, -B, A+B, +A-B, -A+B, -A-B
• Programmable via the integrated Features 1
keypad or the RS-232 interface
with MS Windows D1000S Programs 1
®
configuration software Test steps 1
• Backlit LCD for scale display and Dynamic functions Max, Min, Max-Min, (Max+Min)/2, Average
two line digital display Configuration PC, keyboard
• 5 three color status lamps for Zero setter Can be set to zero at any point
warning and tolerance limits Error limit, digital display 0.05 %
• 1 input for pneumatic measuring Error limit, analog display 2% (decimal scale display)
equipment (compatible with Temperature coefficient µm/°C 0.005
Mahr / Federal electrical spec.)
• RS– 232 interface Air pressure 2.1 bar ± 5 %
• 3 digital inputs for measurement Air consumption in l/h Approx. 1-2 m 3
start, master measurement, Data interface RS232C, Wireless
measured value transfer Control inputs 3 optocoupler inputs, 24 V, 10 mA
• 3 digital outputs for good, Control outputs 3 optocoupler outputs, 24 V, 100 mA
reject, rework, measuring time Energy supply Power source, 230 V/115 V; 50/60 Hz
• Package contains: instruction IP protection category IP 43
manual, power source
• SoftwareMarCom Professional
free download: www.mahr.com/ Order no. Depth Height Width
marcom (only for Mahr data mm mm mm
cables and wireless systems with 5312095 165 205 160
USB and RS232 interface) 5312093 165 205 160

298 Millimar | Electrical Length Measuring Instruments
