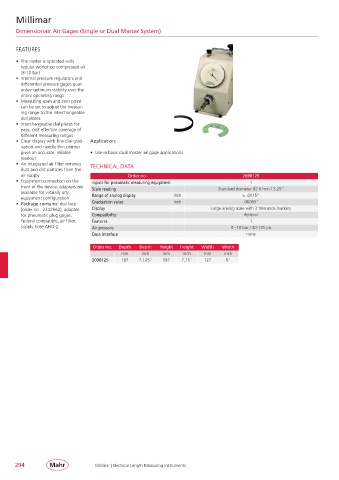

Millimar

Dimensionair Air Gages (Single or Dual Master System)

FEATURES

• The center is operated with
regular workshop compressed air
(3-10 bar)
• Internal pressure regulators and
differential pressure gages guar-
antee optimum stability over the
entire operating range
• Measuring span and zero point
can be set to adjust the measur-
ing range to the interchangeable
dial plates
• Interchangeable dial plates for
easy, cost effective coverage of
different measuring ranges
• Clear display with fine dial grad- Application:
uation and needle thin pointer
gives an accurate, reliable • Use in basic dual master air gage applications
readout
• An integrated air filter removes TECHNICAL DATA
dust and dirt particles from the
air supply Order no. 2098125
• Equipment connection on the Inputs for pneumatic measuring equipment 1
front of the device; adapters are Scale reading Standard diameter 82.6 mm / 3.25“
available for virtually any Range of analog display inch ± .0015“
equipment configuration
• Package contains: dial face Graduation value inch .00005“
(order no.: 2242662), adapter Display Large analog scale with 2 tolerance markers
for pneumatic plug gages, Compatibility Federal
Federal compatible, air filter, Features 1
supply hose AHO-2 Air pressure 3 – 10 bar / 40-125 psi
Data interface none

Order no. Depth Depth Height Height Width Width
mm inch mm inch mm inch
2098125 187 7.125“ 197 7.75“ 127 5“

294 Millimar | Electrical Length Measuring Instruments
