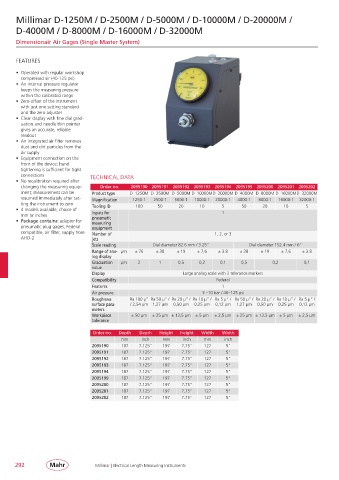

Millimar D-1250M / D-2500M / D-5000M / D-10000M / D-20000M /

D-4000M / D-8000M / D-16000M / D-32000M
Dimensionair Air Gages (Single Master System)

FEATURES
• Operated with regular workshop
compressed air (40-125 psi)
• An internal pressure regulator
keeps the measuring pressure
within the calibrated range
• Zero offset of the instrument
with just one setting standard
and the zero adjuster
• Clear display with fine dial grad-
uation and needle thin pointer
gives an accurate, reliable
readout
• An integrated air filter removes
dust and dirt particles from the
air supply
• Equipment connection on the
front of the device; hand
tightening is sufficient for tight
connections TECHNICAL DATA
• No recalibration required after
changing the measuring equip- Order no. 2095190 2095191 2095192 2095193 2095194 2095199 2095200 2095201 2095202
ment; measurement can be Product type D– 1250M D– 2500M D– 5000M D– 10000MD– 20000M D– 4000M D– 8000M D– 16000MD– 32000M
resumed immediately after set- Magnification 1250:1 2500:1 5000:1 10000:1 20000:1 4000:1 8000:1 16000:1 32000:1
ting the instrument to zero Tooling ID 100 50 20 10 5 50 20 10 5
• 4 models available, choice of Inputs for 1
mm or inches pneumatic
• Package contains: adapter for measuring
pneumatic plug gages, Federal equipment
compatible, air filter, supply hose Number of 1, 2, or 3
AHO-2 jets
Scale reading Dial diameter 82.6 mm / 3.25” Dial diameter 152.4 mm / 6”
Range of ana- µm ± 76 ± 38 ± 19 ± 7,6 ± 3.8 ± 38 ± 19 ± 7,6 ± 3.8
log display
Graduation µm 2 1 0,5 0,2 0,1 0,5 0,2 0,1
value
Display Large analog scale with 2 tolerance markers
Compatibility Federal
Features 1
Air pressure 3 – 10 bar / 40– 125 psi
Roughness Ra 100 µ” Ra 50 µ” / Ra 20 µ” / Ra 10 µ” / Ra 5 µ” / Ra 50 µ” / Ra 20 µ” / Ra 10 µ” / Ra 5 µ” /
surface para- / 2,54 µm 1,27 µm 0,50 µm 0,25 µm 0,12 µm 1,27 µm 0,50 µm 0,25 µm 0,12 µm
meters
Workpiece ± 50 µm ± 25 µm ± 13,5 µm ± 5 µm ± 2,5 µm ± 25 µm ± 13.5 µm ± 5 µm ± 2,5 µm
tolerance
Order no. Depth Depth Height Height Width Width
mm inch mm inch mm inch
2095190 187 7.125“ 197 7.75“ 127 5“
2095191 187 7.125“ 197 7.75“ 127 5“
2095192 187 7.125“ 197 7.75“ 127 5“
2095193 187 7.125“ 197 7.75“ 127 5“
2095194 187 7.125“ 197 7.75“ 127 5“
2095199 187 7.125“ 197 7.75“ 127 5“
2095200 187 7.125“ 197 7.75“ 127 5“
2095201 187 7.125“ 197 7.75“ 127 5“
2095202 187 7.125“ 197 7.75“ 127 5“

292 Millimar | Electrical Length Measuring Instruments
