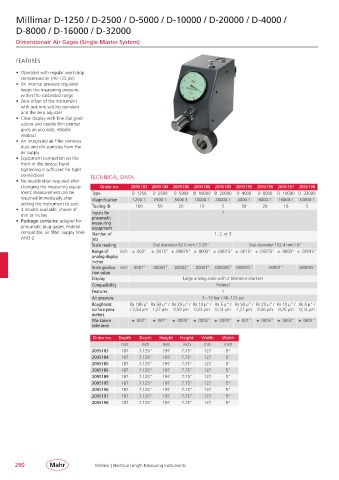

Millimar D-1250 / D-2500 / D-5000 / D-10000 / D-20000 / D-4000 /

D-8000 / D-16000 / D-32000
Dimensionair Air Gages (Single Master System)

FEATURES
• Operated with regular workshop
compressed air (40-125 psi)
• An internal pressure regulator
keeps the measuring pressure
within the calibrated range
• Zero offset of the instrument
with just one setting standard
and the zero adjuster
• Clear display with fine dial grad-
uation and needle thin pointer
gives an accurate, reliable
readout
• An integrated air filter removes
dust and dirt particles from the
air supply
• Equipment connection on the
front of the device; hand
tightening is sufficient for tight
connections TECHNICAL DATA
• No recalibration required after
changing the measuring equip- Order no. 2095183 2095184 2095185 2095186 2095189 2095195 2095196 2095197 2095198
ment; measurement can be Type D– 1250 D– 2500 D– 5000 D– 10000 D– 20000 D– 4000 D– 8000 D– 16000 D– 32000
resumed immediately after Magnification 1250:1 2500:1 5000:1 10000:1 20000:1 4000:1 8000:1 16000:1 32000:1
setting the instrument to zero Tooling ID 100 50 20 10 5 50 20 10 5
• 4 models available, choice of Inputs for 1
mm or inches pneumatic
• Package contains: adapter for measuring
pneumatic plug gages, Federal equipment
compatible, air filter, supply hose Number of 1, 2, or 3
AHO-2 jets
Scale reading Dial diameter 82.6 mm / 3.25” Dial diameter 152.4 mm / 6”
Range of inch ± .003’’ ± .0015” ± .00075” ± .0003’’ ± .00015” ± .0015” ± .00075” ± .0003” ± .00015”
analog display
inches
Scale gradua- inch .0001’’ .00005” .00002’’ .00001’’ .000005” .000025” .00001’’ .000005”
tion value
Display Large analog scale with 2 tolerance markers
Compatibility Federal
Features 1
Air pressure 3 – 10 bar / 40– 125 psi
Roughness Ra 100 µ” Ra 50 µ” / Ra 20 µ” / Ra 10 µ” / Ra 5 µ” / Ra 50 µ” / Ra 20 µ” / Ra 10 µ” / Ra 5 µ” /
surface para- / 2,54 µm 1,27 µm 0,50 µm 0,25 µm 0,12 µm 1,27 µm 0,50 µm 0,25 µm 0,12 µm
meters
Workpiece ± .002“ ± .001“ ± .0005“ ± .0002“ ± .0001“ ± .001“ ± .0005“ ± .0002“ ± .0001“
tolerance

Order no. Depth Depth Height Height Width Width
mm inch mm inch mm inch
2095183 187 7.125“ 197 7.75“ 127 5“
2095184 187 7.125“ 197 7.75“ 127 5“
2095185 187 7.125“ 197 7.75“ 127 5“
2095186 187 7.125“ 197 7.75“ 127 5“
2095189 187 7.125“ 197 7.75“ 127 5“
2095195 187 7.125“ 197 7.75“ 127 5“
2095196 187 7.125“ 197 7.75“ 127 5“
2095197 187 7.125“ 197 7.75“ 127 5“
2095198 187 7.125“ 197 7.75“ 127 5“
