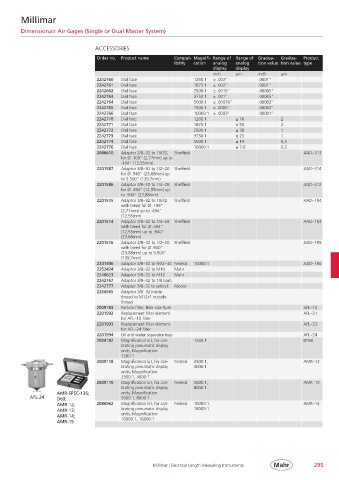

Page 299 - Mahr马尔量具完整

Millimar

Dimensionair Air Gages (Single or Dual Master System)

ACCESSORIES
Order no. Product name Compat- Magnifi- Range of Range of Gradua- Gradua- Product
ibility cation analog analog tion value tion value type
display display
inch µm inch µm
2242760 Dial face 1260:1 ± .003’’ .0001’’
2242761 Dial face 1875:1 ± .002” .0001’’
2242662 Dial face 2500:1 ± .0015” .00005”
2242763 Dial face 3750:1 ± .001’’ .00005”
2242764 Dial face 5000:1 ± .00076” .00002’’
2242765 Dial face 7500:1 ± .0005” .00002’’
2242766 Dial face 10000:1 ± .0003’’ .00001’’
2242770 Dial face 1260:1 ± 76 2
2242771 Dial face 1875:1 ± 50 2
2242772 Dial face 2500:1 ± 38 1
2242773 Dial face 3750:1 ± 25 1
2242774 Dial face 5000:1 ± 19 0,5
2242776 Dial face 10000:1 ± 7,6 0,2
2086610 Adaptor 3/8– 32 to 10/32, Sheffield AAD– 313
for Ø .109” (2,77mm) up to
.494” (12,55mm)
2201587 Adaptor 3/8– 32 to 1/2– 20 Sheffield AAD– 314
for Ø .940” (23,88mm) up
to 5.500” (139,7mm)
2201586 Adaptor 3/8– 32 to 1/4– 28 Sheffield AAD– 312
for Ø .494” (12,55mm) up
to .940” (23,88mm)
2201515 Adaptor 3/8– 32 to 10/32 Sheffield AAD– 194
with bleed for Ø .109”
(2,77mm) up to .494”
(12,55mm)
2201514 Adaptor 3/8– 32 to 1/4– 28 Sheffield AAD– 193
with bleed for Ø .494”
(12,55mm) up to .940”
(23,88mm)
2201516 Adaptor 3/8– 32 to 1/2– 20 Sheffield AAD– 195
with bleed for Ø .940”
(23,88mm) up to 5.500”
(139,7mm)
2201496 Adaptor 3/8– 32 to 9/32– 40 Federal 10000:1 AAD– 165
2253424 Adaptor 3/8– 32 to M10 Mahr
2240623 Adaptor 3/8– 32 to M12 Mahr
2242767 Adaptor 3/8– 32 to 1/8 barb
2242777 Adapter 3/8– 32 to setlock Moore
2254565 Adaptor 3/8– 32 inside
thread to M12x1 outside
thread
2009183 Particle filter, filter size 5µm AFL– 10
2201992 Replacement filter element AFL– 21
for AFL– 10 filter
2201993 Replacement filter element AFL– 23
for AFL– 24 filter
2201994 Oil and water separator trap AFL– 24
2094182 Magnification kit, for cali- 1260:1 DP60
brating pneumatic display
units, Magnification:
1260:1
2009118 Magnification kit, for cali- Federal 2500:1, AMR– 12
brating pneumatic display 4000:1
units, Magnification:
2500:1, 4000:1
2009119 Magnification kit, for cali- Federal 5000:1, AMR– 13
brating pneumatic display 8000:1
AMR-SPEC-136; units, Magnification:
AFL-24 D60; 5000:1, 8000:1
AMR-12; 2086962 Magnification kit, for cali- Federal 10000:1, AMR– 14
AMR-13; brating pneumatic display 16000:1
AMR-14; units, Magnification:
10000:1, 16000:1
AMR-15

Millimar | Electrical Length Measuring Instruments 295
