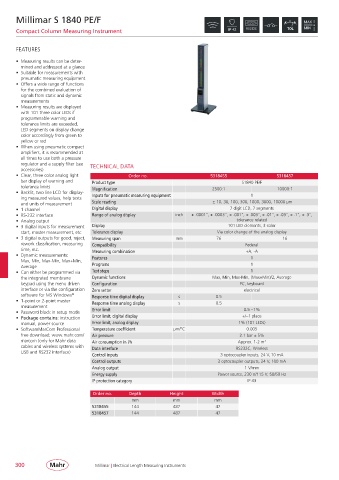

Millimar S 1840 PE/F

Compact Column Measuring Instrument

FEATURES

• Measuring results can be deter-
mined and addressed at a glance
• Suitable for measurements with
pneumatic measuring equipment
• Offers a wide range of functions
for the combined evaluation of
signals from static and dynamic
measurements
• Measuring results are displayed
with 101 three color LEDs if
programmable warning and
tolerance limits are exceeded,
LED segments on display change
color accordingly from green to
yellow or red
• When using pneumatic compact
amplifiers, it is recommended at
all times to use both a pressure
regulator and a supply filter (see TECHNICAL DATA
accessories)
• Clear, three color analog light Order no. 5318455 5318457
bar display of warning and Product type S1840 PE/F
tolerance limits Magnification 2500:1 10000:1
• Backlit, two line LCD for display- Inputs for pneumatic measuring equipment 1
ing measured values, help texts
and units of measurement Scale reading ± 10, 30, 100, 300, 1000, 3000, 10000 μm
• 1 channel Digital display 7 digit LCD, 7 segments
• RS-232 interface Range of analog display inch ± .0001‘‘, ± .0003“, ± .001‘‘, ± .003‘‘, ± .01‘‘, ± .03‘‘, ± .1‘‘, ± .3‘‘,
• Analog output tolerance related
• 3 digital inputs for measurement Display 101 LED elements, 3 color
start, master measurement, etc. Tolerance display Via color change of the analog display
• 3 digital outputs for good, reject, Measuring span mm 76 16
rework classification, measuring Compatibility Federal
time, etc. Measuring combination +A, -A
• Dynamic measurements: Features 1
Max, Min, Max-Min, Max+Min,
Average Programs 1
• Can either be programmed via Test steps 1
the integrated membrane Dynamic functions Max, Min, Max-Min, (Max+Min)/2, Average
keypad using the menu driven Configuration PC, keyboard
interface or via the configuration Zero setter electrical
software for MS Windows ® Response time digital display s 0.5
• 1-point or 2-point master Response time analog display s 0.5
measurement
• Password block in setup mode Error limit 0.5 – 1%
• Package contains: instruction Error limit, digital display +/– 1 place
manual, power source Error limit, analog display 1% (101 LEDs)
• SoftwareMarCom Professional Temperature coefficient µm/°C 0.005
free download: www.mahr.com/ Air pressure 2.1 bar ± 5%
marcom (only for Mahr data Air consumption in l/h Approx. 1-2 m 3
cables and wireless systems with Data interface RS232C, Wireless
USB and RS232 interface)
Control inputs 3 optocoupler inputs, 24 V, 10 mA
Control outputs 3 optocoupler outputs, 24 V, 100 mA
Analog output 1 V/mm
Energy supply Power source, 230 V/115 V; 50/60 Hz
IP protection category IP 43

Order no. Depth Height Width
mm mm mm
5318455 144 487 47
5318457 144 487 47

300 Millimar | Electrical Length Measuring Instruments
