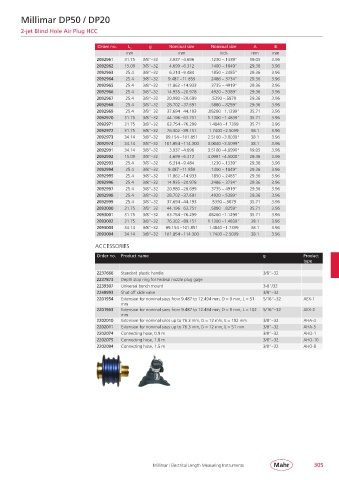

Page 309 - Mahr马尔量具完整

Millimar DP50 / DP20

2-jet Blind Hole Air Plug HCC

Order no. L g Nominal size Nominal size A B
2
mm mm inch mm mm
2092961 31.75 3/8“– 32 3.937 – 4.696 .1230 – .1339“ 19.05 3.96
2092962 15.09 3/8“– 32 4.699 – 6.312 .1400 – .1849“ 29.36 3.96
2092963 25.4 3/8“– 32 6.314 – 9.484 .1850 – .2485“ 29.36 3.96
2092964 25.4 3/8“– 32 9.487 – 11.859 .2486 – .3734“ 29.36 3.96
2092965 25.4 3/8“– 32 11.862 – 14.933 .3735 – .4919“ 29.36 3.96
2092966 25.4 3/8“– 32 14.935 – 20.978 .4920 – .5389“ 29.36 3.96
2092967 25.4 3/8“– 32 20.980 – 28.699 .5390 – .5879 29.36 3.96
2092968 25.4 3/8“– 32 28.702 – 37.691 .5880 – .8259“ 29.36 3.96
2092969 25.4 3/8“– 32 37.694 – 44.193 .08260 – 1.1299“ 35.71 3.96
2092970 31.75 3/8“– 32 44.196 – 63.751 1.1300 – 1.4839“ 35.71 3.96
2092971 31.75 3/8“– 32 63.754 – 76.299 1.4840 – 1.7399 35.71 3.96
2092972 31.75 3/8“– 32 76.302 – 89.151 1.7400 – 2.5099 38.1 3.96
2092973 34.14 3/8“– 32 89.154 – 101.851 2.5100 – 3.0039“ 38.1 3.96
2092974 34.14 3/8“– 32 101.854 – 114.300 3.0040 – 3.5099“ 38.1 3.96
2092991 34.14 3/8“– 32 3.937 – 4.696 3.5100 – 4.0990“ 19.05 3.96
2092992 15.09 3/8“– 32 4.699 – 6.312 4.0991 – 4.5000“ 29.36 3.96
2092993 25.4 3/8“– 32 6.314 – 9.484 .1230 – .1339“ 29.36 3.96
2092994 25.4 3/8“– 32 9.487 – 11.859 .1400 – .1849“ 29.36 3.96
2092995 25.4 3/8“– 32 11.862 – 14.933 .1850 – .2485“ 29.36 3.96
2092996 25.4 3/8“– 32 14.935 – 20.978 .2486 – .3734“ 29.36 3.96
2092997 25.4 3/8“– 32 20.980 – 28.699 .3735 – .4919“ 29.36 3.96
2092998 25.4 3/8“– 32 28.702 – 37.691 .4920 – .5389“ 29.36 3.96
2092999 25.4 3/8“– 32 37.694 – 44.193 .5390 – .5879 35.71 3.96
2093000 31.75 3/8“– 32 44.196 – 63.751 .5880 – .8259“ 35.71 3.96
2093001 31.75 3/8“– 32 63.754 – 76.299 .08260 – 1.1299“ 35.71 3.96
2093002 31.75 3/8“– 32 76.302 – 89.151 1.1300 – 1.4839“ 38.1 3.96
2093003 34.14 3/8“– 32 89.154 – 101.851 1.4840 – 1.7399 38.1 3.96
2093004 34.14 3/8“– 32 101.854 – 114.300 1.7400 – 2.5099 38.1 3.96
ACCESSORIES

Order no. Product name g Product
type

2237666 Standard plastic handle 3/8“– 32
2237873 Depth stop ring for Federal nozzle plug gage
2239307 Universal bench mount 3-8“/32
2240993 Shut off slide valve 3/8“– 32
2201954 Extension for nominal sizes from 9.487 to 12.494 mm, D = 9 mm, L = 51 5/16“– 32 AEX-1
mm
2201963 Extension for nominal sizes from 9.487 to 12.494 mm, D = 9 mm, L = 102 5/16“– 32 AEX-2
mm
2202010 Extension for nominal sizes up to 76.3 mm, D = 12 mm, L = 102 mm 3/8“– 32 AHA-4
2202011 Extension for nominal sizes up to 76.3 mm, D = 12 mm, L = 51 mm 3/8“– 32 AHA-5
2202074 Connecting hose, 0.9 m 3/8“– 32 AHO-1
2202075 Connecting hose, 1.8 m 3/8“– 32 AHO-10
2202094 Connecting hose, 1.5 m 3/8“– 32 AHO-8

Millimar | Electrical Length Measuring Instruments 305
