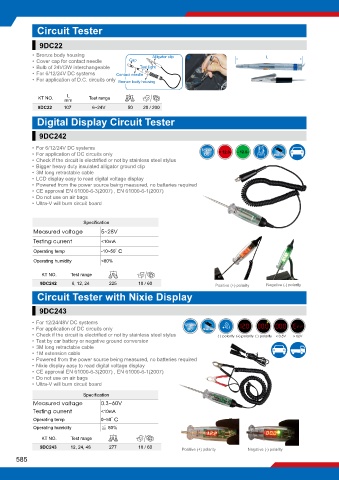

Circuit Tester

9DC22
• Bronze body housing Alligator clip L
• Cover cap for contact needle Cap
• Bulb of 24V/3W interchangeable Test light
• For 6/12/24V DC systems Contact needle
• For application of D.C. circuits only Bronze body housing

L
KT NO. mm Test range g
9DC22 107 6~24V 50 20 / 200
Digital Display Circuit Tester

9DC242

• For 6/12/24V DC systems 6~24V
• For application of DC circuits only DC + 12.0V - 12.0V Max. 3M
• Check if the circuit is electrified or not by stainless steel stylus
• Bigger heavy duty insulated alligator ground clip
• 3M long retractable cable
• LCD display easy to read digital voltage display
• Powered from the power source being measured, no batteries required
• CE approval EN 61000-6-3(2007) , EN 61000-6-1(2007)
• Do not use on air bags
• Ultra-V will burn circuit board

Specification
Measured valtage 5~28V
Testing current <10mA
Operating temp -10~50° C
Operating humidity <80%

KT NO. Test range g
9DC242 6, 12, 24 225 10 / 60 Positive (+) polarity Negative (-) polarity

Circuit Tester with Nixie Display

9DC243

• For 12/24/48V DC systems 12~48V
• For application of DC circuits only DC Max. 3M
• Check if the circuit is electrified or not by stainless steel stylus (-) polarity (+) polarity (-) polarity < 0.3V > 62V
• Test by car battery or negative ground conversion
• 3M long retractable cable
• 1M extension cable
• Powered from the power source being measured, no batteries required
• Nixie display easy to read digital voltage display
• CE approval EN 61000-6-3(2007) , EN 61000-6-1(2007)
• Do not use on air bags
• Ultra-V will burn circuit board

Specification
Measured valtage 0.3~60V
Testing current <10mA
Operating temp 0~50° C
Operating humidity ≦ 80%
KT NO. Test range g
9DC243 12, 24, 48 277 10 / 60 Positive (+) polarity Negative (-) polarity
