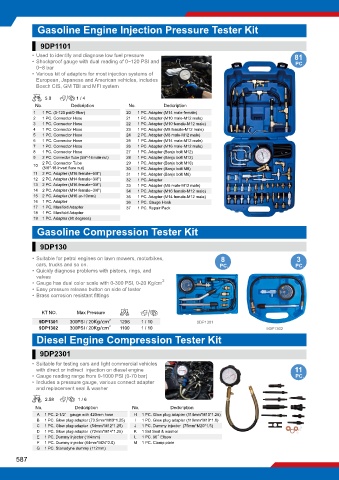

Page 628 - 蓝带金统立KINGTONY2025年样本

Gasoline Engine Injection Pressure Tester Kit

9DP1101
• Used to identify and diagnose low fuel pressure 81
• Shockproof gauge with dual reading of 0~120 PSI and PC.
0~8 bar
• Various kit of adapters for most injection systems of
European, Japanese and American vehicles, includes
Bosch CIS, GM TBI and MFI system

kg 5.0 1 / 4
No. Dedcription No. Dedcription
1 1 PC. (0-120 psi/0-8bar) 20 1 PC. Adapter (M14 male-female)
2 1 PC. Connector Hose 21 1 PC. Adapter (M10 male-M12 male)
3 1 PC. Connector Hose 22 1 PC. Adapter (M10 female-M12 male)
4 1 PC. Connector Hose 23 1 PC. Adapter (M8 female-M12 male)
5 1 PC. Connector Hose 24 2 PC. Adapter (M8 male-M12 male)
6 1 PC. Connector Hose 25 1 PC. Adapter (M14 male-M12 male)
7 1 PC. Connector Hose 26 1 PC. Adapter (M16 male-M12 male)
8 1 PC. Connector Hose 27 1 PC. Adapter (Banjo bolt M12)
9 2 PC. Connector Tube (5/8"-18 male nut) 28 1 PC. Adapter (Banjo bolt M12)
2 PC. Connector Tube 29 1 PC. Adapter (Banjo bolt M10)
10 (5/8"-18 invert flare nut) 30 1 PC. Adapter (Banjo bolt M8)
11 2 PC. Adapter (M16 female~5/8") 31 1 PC. Adapter (Banjo bolt M6)
12 2 PC. Adapter (M14 female~3/8") 32 1 PC. Adapter
13 2 PC. Adapter (M16 female~3/8") 33 1 PC. Adapter (M8 male-M12 male)
14 2 PC. Adapter (M14 female~3/8") 34 1 PC. Adapter (M16 female-M12 male)
15 2 PC. Adapter (M16 ar-10mm) 35 1 PC. Adapter (M14 female-M12 male)
16 1 PC. Adapter 36 1 PC. Gauge Hook
17 1 PC. Manifold Adapter 37 1 PC. Repair Pack
18 1 PC. Manifold Adapter
19 1 PC. Adapter (90 degrees)
Gasoline Compression Tester Kit

9DP130

• Suitable for petrol engines on lawn mowers, motorbikes, 8 3
cars, trucks and so on. PC. PC.
• Quickly diagnose problems with pistons, rings, and
valves
• Gauge has dual color scale with 0-300 PSI, 0-20 Kg/cm 2
• Easy pressure release button on side of tester
• Brass corrosion resistant fittings

KT NO. Max Pressure g
9DP1301 300PSI / 20Kg/cm 2 1206 1 / 10 9DP1301
9DP1302 300PSI / 20Kg/cm 2 1100 1 / 10 9DP1302
Diesel Engine Compression Tester Kit

9DP2301

• Suitable for testing cars and light commercial vehicles
with direct or indirect injection on diesel engine 11
• Gauge reading range from 0-1000 PSI (0-70 bar) PC.
• Includes a pressure gauge, various connect adapter
and replacement seal & washer

kg 2.58 1 / 6
No. Dedcription No. Dedcription
A 1 PC. 2-1/2” gauge with 420mm hose H 1 PC. Glow plug adapter (114mm*M10*1.25)
B 1 PC. Glow plug adapter (73.5mm*M10*1.25) I 1 PC. Glow plug adapter (119mm*M10*1.0)
C 1 PC. Glow plug adapter (54mm*M12*1.25) J 1 PC. Dummy injector (75mm*M20*1.5)
D 1 PC. Glow plug adapter (72mm*M14*1.25) K 1 Set Seal & washer
E 1 PC. Dummy injector (114mm) L 1 PC. 90˚ Elbow
F 1 PC. Dummy injector (64mm*M24*2.0) M 1 PC. Clamp plate
G 1 PC. Stanadyne dummy (112mm)
