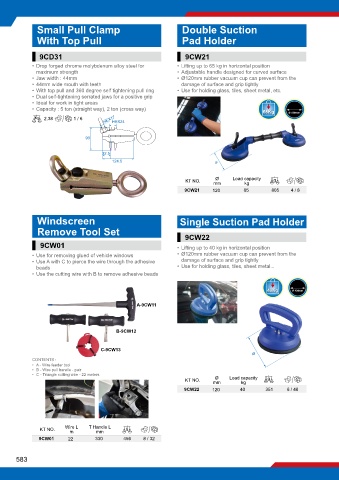

Small Pull Clamp Double Suction
With Top Pull Pad Holder

9CD31 9CW21

• Drop forged chrome molybdenum alloy steel for • Lifting up to 65 kg in horizontal position
maximum strength • Adjustable handle designed for curved surface
• Jaw width : 44mm • Ø120mm rubber vacuum cup can prevent from the
• 44mm wide mouth with teeth damage of surface and grip tightly
• With top pull and 360 degree self tightening pull ring • Use for holding glass, tiles, sheet metal, etc.
• Dual self-tightening serrated jaws for a positive grip
• Ideal for work in tight areas
• Capacity : 5 ton (straight way), 2 ton (cross way)
Kg 2.38 1 / 6 HEX17 HEX24

93

32.5
124.5 ø

Ø
KT NO. mm Load capacity g
kg
9CW21 120 65 805 4 / 8

Windscreen Single Suction Pad Holder
Remove Tool Set 9CW22

9CW01 • Lifting up to 40 kg in horizontal position
• Use for removing glued of vehicle windows • Ø120mm rubber vacuum cup can prevent from the
• Use A with C to pierce the wire through the adhesive damage of surface and grip tightly
beads • Use for holding glass, tiles, sheet metal…
• Use the cutting wire with B to remove adhesive beads

A-9CW11

B-9CW12

C-9CW13
ø
CONTENTS :
• A - Wire feeder tool
• B - Wire pull handle - pair
• C - Triangle cutting wire - 22 meters
Ø
KT NO. mm Load capacity g
kg
9CW22 120 40 351 6 / 48

KT NO. Wire L T Handle L g
mm
m
9CW01 22 330 456 8 / 32

583
