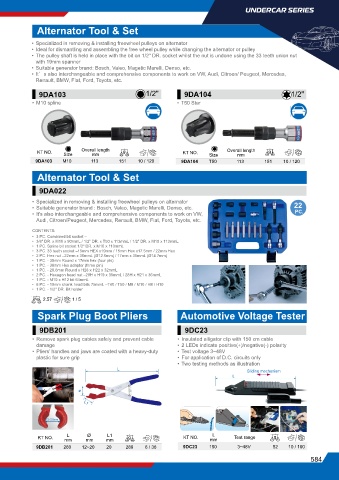

UNDERCAR SERIES

Alternator Tool & Set

• Specialized in removing & installing freewheel pulleys on alternator
• Ideal for dismantling and assembling the free wheel pulley while changing the alternator or pulley
• The pulley shaft is held in place with the bit on 1/2" DR. socket whilst the nut is undone using the 33 teeth union nut
with 19mm spanner
• Suitable generator brand: Bosch, Valeo, Magetic Marelli, Denso, etc.
• It’s also interchangeable and comprehensive components to work on VW, Audi, Citroen/ Peugeot, Mercedes,
Renault, BMW, Flat, Ford, Toyota, etc.

9DA103 1/2" 9DA104 1/2"
• M10 spline • T50 Star

KT NO. Size Overall length g KT NO. Size Overall length g
mm
mm
9DA103 M10 113 151 10 / 120 9DA104 T50 113 151 10 / 120
Alternator Tool & Set

9DA022
• Specialized in removing & installing freewheel pulleys on alternator
• Suitable generator brand : Bosch, Valeo, Magetic Marelli, Denso, etc. 22
• It's also interchangeable and comprehensive components to work on VW, PC.
Audi, Citroen/Peugeot, Mercedes, Renault, BMW, Fiat, Ford, Toyota, etc.
CONTENTS:
• 3 PC. Combined bit socket –
• 3/8" DR. x M10 x 90mmL / 1/2" DR. x T50 x 113mmL / 1/2" DR. x M10 x 113mmL
• 1 PC. Spline bit socket 1/2" DR. x M10 x 110mmL
• 3 PC. 33 teeth socket –15mm HEX x19mm / 15mm Hex x17.5mm / 22mm Hex
• 2 PC. Hex nut –22mm x 30mmL (Ø12.0mm) / 17mm x 35mmL (Ø14.7mm)
• 1 PC. - 35mm Round x 17mm hex (four pin)
• 1 PC. - 38mm Hex adaptor (three pin)
• 1 PC. - 28.6mm Round x H28 x H22 x 32mmL
• 2 PC. - Hexagon head nut –28H x H19 x 35mmL / 28H x H21 x 36mmL
• 1 PC. - M10 x H12 bit 64mmL
• 6 PC. - 10mm shank head bits 75mmL –T40 / T50 / M8 / M10 / H8 / H10
• 1 PC. - 1/2" DR. Bit holder
Kg 2.57 1 / 5

Spark Plug Boot Pliers Automotive Voltage Tester

9DB201 9DC23

• Remove spark plug cables safely and prevent cable • Insulated alligator clip with 150 cm cable
damage • 2 LEDs indicate positive(+)/negative(-) polarity
• Pliers' handles and jaws are coated with a heavy-duty • Test voltage 3~48V
plastic for sure grip • For application of D.C. circuits only
• Two testing methods as illustration
L Sliding mechanism
L

ø

L1

12-20mm

L
L
Ø
L1
KT NO. mm mm mm g KT NO. mm Test range g
9DB201 260 12~20 20 289 6 / 36 9DC23 150 3~48V 52 10 / 100
584
