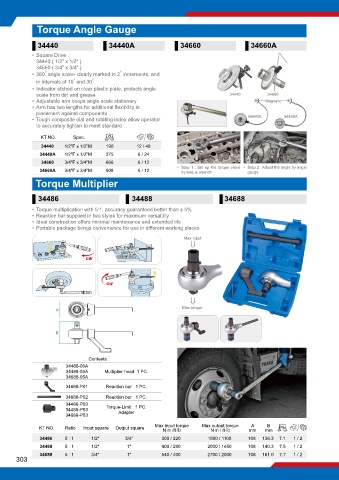

Page 344 - 蓝带金统立KINGTONY2025年样本

Torque Angle Gauge

34440 34440A 34660 34660A
• Square Drive :
34440 ( 1/2" x 1/2" )
34660 ( 3/4" x 3/4" )
°
°
• 360 angle scale- clearly marked in 2 increments, and
in intervals of 10 and 30
°
°
• Indicator etched on clear plastic plate, protects angle
scale from dirt and grease 34440 34660
• Adjustable arm keeps angle scale stationary Magnetic
• Arm has two lengths for additional flexibility in
placement against components
• Tough composite dial and rotating index allow operator 34660A 34440A
to accurately tighten to meet standard
KT NO. Spec. g
34440 1/2"F x 1/2"M 190 12 / 48
34440A 1/2"F x 1/2"M 375 6 / 24
34660 3/4"F x 3/4"M 666 6 / 12
• Step 1 : Set up the torque value • Step 2 : Adjust the angle by angle
34660A 3/4"F x 3/4"M 908 6 / 12 by torque wrench gauge
Torque Multiplier

34486 34488 34688

• Torque multiplication with 5:1, accuracy guaranteed better than ± 5%
• Reaction bar supplied in two styles for maximum versatility
• Ideal construction offers minimal maintenance and extended life
• Portable package brings convenience for use in different working places

Max Input

CW

CW

Max torque
A

Max. 400Nm
Max. 400Nm
B

Contents
34486-05A
34488-05A Multiplier head 1 PC.
34688-05A
34688-P01 Reaction bar 1 PC.
34688-P02 Reaction bar 1 PC.
34486-P03 Torque-Limit 1 PC.
34488-P03
34688-P03 Adapter

A
B
KT NO. Ratio Input square Output square Max input torque Max output torque mm mm kg
N‧m / ft‧lb
N‧m /ft‧lb
34486 5 : 1 1/2" 3/4" 300 / 220 1500 / 1100 108 136.3 7.1 1 / 2
34488 5 : 1 1/2" 1" 400 / 290 2000 / 1450 108 140.3 7.5 1 / 2
34688 5 : 1 3/4" 1" 540 / 400 2700 / 2000 108 161.0 7.7 1 / 2
303
