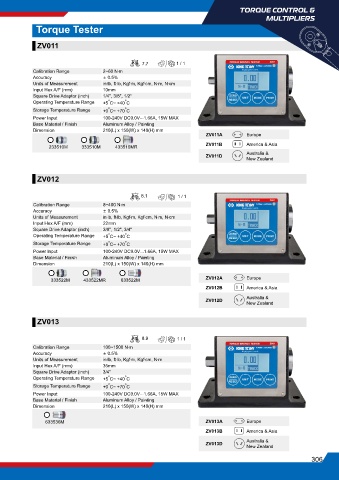

Page 347 - 蓝带金统立KINGTONY2025年样本

TORQUE CONTROL &
MULTIPLIERS
Torque Tester

ZV011

kg 7.7 1 / 1
Calibration Range 2~60 N‧m
Accuracy ± 0.5%
Units of Measurement in‧lb, ft‧lb, Kgf‧m, Kgf‧cm, N‧m, N‧cm
Input Hex A/F (mm) 10mm
Square Drive Adaptor (inch) 1/4", 3/8", 1/2"
°
°
Operating Temperature Range +5 C~ +40 C
Storage Temperature Range +0 C~ +70 C
°
°
Power Input 100-240V DC9.0V...1.66A, 15W MAX
Base Material / Finish Aluminum Alloy / Painting
Dimension 210(L) x 150(W) x 140(H) mm
ZV011A Europe
ZV011B America & Asia
233510M 333510M 433510MR
Australia &
ZV011D
New Zealand
ZV012

kg 8.1 1 / 1
Calibration Range 8~400 N‧m
Accuracy ± 0.5%
Units of Measurement in‧lb, ft‧lb, Kgf‧m, Kgf‧cm, N‧m, N‧cm
Input Hex A/F (mm) 22mm
Square Drive Adaptor (inch) 3/8", 1/2", 3/4"
°
Operating Temperature Range +5 C~ +40 C
°
Storage Temperature Range +0 C~ +70 C
°
°
Power Input 100-240V DC9.0V...1.66A, 15W MAX
Base Material / Finish Aluminum Alloy / Painting
Dimension 210(L) x 150(W) x 140(H) mm
333522M 433522MR 633522M ZV012A Europe
ZV012B America & Asia
Australia &
ZV012D
New Zealand

ZV013

kg 8.9 1 / 1
Calibration Range 100~1500 N‧m
Accuracy ± 0.5%
Units of Measurement in‧lb, ft‧lb, Kgf‧m, Kgf‧cm, N‧m
Input Hex A/F (mm) 36mm
Square Drive Adaptor (inch) 3/4"
Operating Temperature Range +5 C~ +40 C
°
°
Storage Temperature Range +0 C~ +70 C
°
°
Power Input 100-240V DC9.0V...1.66A, 15W MAX
Base Material / Finish Aluminum Alloy / Painting
Dimension 210(L) x 150(W) x 140(H) mm
633536M ZV013A Europe
ZV013B America & Asia
ZV013D Australia &
New Zealand

306
