WRENCHES

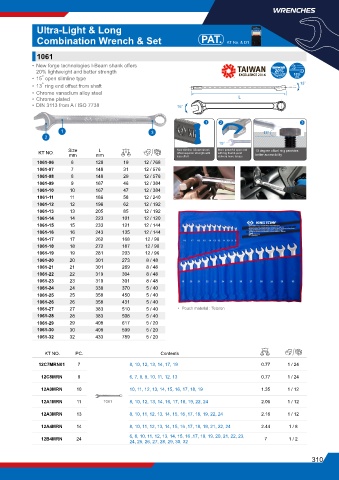

Ultra-Light & Long KT No. & D1

Combination Wrench & Set PAT. KT No. & D1

1061

• New forge technologies I-Beam shank offers Lightweight
20% lightweight and better strength 20% 10%
• 15 open slimline type Increase
°
Length
°
• 13 ring end offset from shaft 13˚
• Chrome vanadium alloy steel
• Chrome plated L
• DIN 3113 from A / ISO 7738 15˚

1 2 3
1 3 13°
2
15°
L
KT NO. Size mm g New slimline I-Beam shank More powerful open end 13 degree offset ring provides
with big thumb point
offers superior strength with
mm
better accessibility
less effort
delivers more torque
1061-06 6 128 19 12 / 768
1061-07 7 148 31 12 / 576
1061-08 8 148 29 12 / 576
1061-09 9 167 46 12 / 384
1061-10 10 167 47 12 / 384
1061-11 11 186 58 12 / 240
1061-12 12 196 62 12 / 192
1061-13 13 205 85 12 / 192
1061-14 14 223 101 12 / 120
1061-15 15 233 121 12 / 144
1061-16 16 243 135 12 / 144
1061-17 17 262 168 12 / 96
1061-18 18 272 187 12 / 96
1061-19 19 281 203 12 / 96
1061-20 20 301 273 8 / 48
1061-21 21 301 269 8 / 48
1061-22 22 319 304 8 / 48
1061-23 23 319 301 8 / 48
1061-24 24 338 370 5 / 40
1061-25 25 358 450 5 / 40
1061-26 26 358 431 5 / 40
1061-27 27 383 510 5 / 40 • Pouch material : Tetoron
1061-28 28 383 508 5 / 40
1061-29 29 408 617 5 / 20
1061-30 30 408 599 5 / 20
1061-32 32 433 789 5 / 20

KT NO. PC. Contents Kg
12C7MRN01 7 8, 10, 12, 13, 14, 17, 19 0.77 1 / 24

12C8MRN 8 6, 7, 8, 9, 10, 11, 12, 13 0.77 1 / 24

12A0MRN 10 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 1.35 1 / 12
12A1MRN 11 1061 8, 10, 12, 13, 14, 16, 17, 18, 19, 22, 24 2.06 1 / 12

12A3MRN 13 8, 10, 11, 12, 13, 14, 15, 16 ,17, 18, 19, 22, 24 2.16 1 / 12

12A4MRN 14 8, 10, 11, 12, 13, 14, 15, 16 ,17, 18, 19, 21, 22, 24 2.44 1 / 8
6, 8, 10, 11, 12, 13, 14, 15, 16 ,17, 18, 19, 20, 21, 22, 23,
12B4MRN 24 7 1 / 2
24, 25, 26, 27, 28, 29, 30, 32

310
