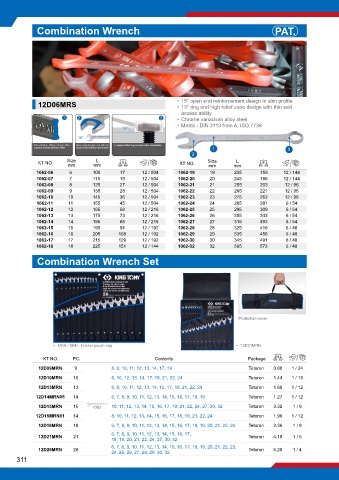

Page 352 - 蓝带金统立KINGTONY2025年样本

Combination Wrench PAT.

12D06MRS • 15° open end reinforcement design in slim profile
• 13° ring end high relief zone design with thin wall
access ability
1 2 3 • Chrome vanadium alloy steel
• Metric - DIN 3113 from A, ISO 7738
13°
15°
New slimline I-Beam shank offers More powerful open end with big 13 degree offset ring provides better accessibility
superior strength with less effort thumb point delivers more torque 1 3
2
L
L
KT NO. Size mm g KT NO. Size mm g
mm
mm
1062-06 6 105 17 12 / 504 1062-19 19 235 159 12 / 144
1062-07 7 115 19 12 / 504 1062-20 20 245 186 12 / 144
1062-08 8 125 27 12 / 504 1062-21 21 255 203 12 / 96
1062-09 9 135 28 12 / 504 1062-22 22 265 221 12 / 96
1062-10 10 145 36 12 / 504 1062-23 23 275 262 12 / 96
1062-11 11 155 45 12 / 504 1062-24 24 285 281 6 / 54
1062-12 12 165 58 12 / 216 1062-25 25 295 309 6 / 54
1062-13 13 175 73 12 / 216 1062-26 26 305 343 6 / 54
1062-14 14 185 88 12 / 216 1062-27 27 315 393 6 / 54
1062-15 15 195 94 12 / 192 1062-28 28 325 416 6 / 48
1062-16 16 205 108 12 / 192 1062-29 29 335 456 6 / 48
1062-17 17 215 129 12 / 192 1062-30 30 345 491 6 / 48
1062-18 18 225 151 12 / 144 1062-32 32 365 573 6 / 48

Combination Wrench Set

Protection cover

• MRN / SRN : Tetoron pouch bag • 12D21MRN

KT NO. PC. Contents Package kg
12D09MRN 9 8, 9, 10, 11, 12, 13, 14, 17, 19 Tetoron 0.80 1 / 24
12D10MRN 10 8, 10, 12, 13, 14, 17, 19, 21, 22, 24 Tetoron 1.44 1 / 16
12D13MRN 13 6, 8, 10, 11, 12, 13, 14, 15, 17, 19, 21, 22, 24 Tetoron 1.68 1 / 12
12D14MRN05 14 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 Tetoron 1.27 1 / 12
12D15MRN 15 1062 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22, 24, 27, 30, 32 Tetoron 3.32 1 / 8
12D15MRN01 14 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24 Tetoron 1.96 1 / 12
12D18MRN 18 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24 Tetoron 2.36 1 / 8
6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17,
12D21MRN 21 Tetoron 4.10 1 / 6
18, 19, 20, 21, 22, 24, 27, 30, 32
6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23,
12D26MRN 26 Tetoron 5.20 1 / 4
24, 25, 26, 27, 28, 29, 30, 32
311
