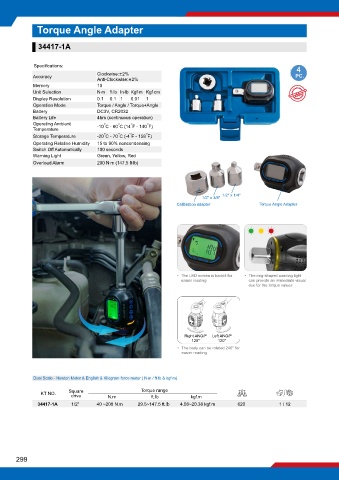

Torque Angle Adapter

34417-1A

Specifications: 4
Clockwise:±2%
Accuracy PC.
Anti-Clockwise:±2%
Memory 10
Unit Selection N‧m ft‧lb In‧lb Kgf‧m Kgf‧cm Angle
Display Resolution 0.1 0.1 1 0.01 1
Operation Mode Torque / Angle / Torque+Angle
Battery DC3V, CR2032
Battery Life 4hrs (continuous operation)
Operating Ambient -10 C - 60 C (14 F - 140 F)
°
°
°
°
Temperature
°
°
°
°
Storage Temperature -20 C - 70 C (-4 F - 158 F)
Operating Relative Humidity 15 to 90% noncondensing
Switch Off Automatically 100 seconds
Warning Light Green, Yellow, Red
Overload Alarm 200 N‧m (147.5 ft‧lb)
1/2" x 1/4"
1/2" x 3/8"
Calibration adapter Torque Angle Adapter

• The LED screen is backlit for • The ring-shaped warning light
easier reading can provide an immediate visual
cue for the torque values

Right ANG/F Left ANG/F
120° 120°
• The body can be rotated 240° for
easier reading

Dual Scale - Newton Meter & English & Kilogram-force meter ( N‧m / ft‧lb & kgf‧m)

KT NO. Square N.m Torque range kgf.m g
drive
ft.lb
34417-1A 1/2" 40 ~200 N.m 29.5~147.5 ft.lb 4.08~20.38 kgf.m 620 1 / 12
